1
Engine displacement
250
2
Model
RS
3
Year
2001
4
Trim
RS 250
5
Parts Catalog

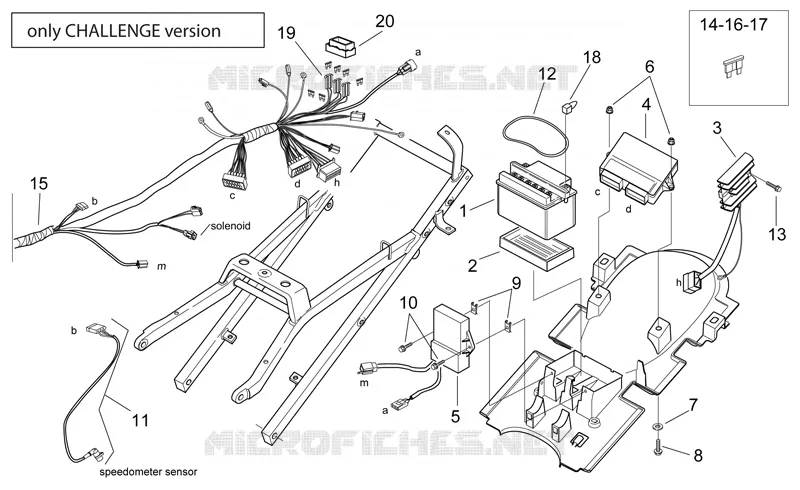

Electrical system - Challenge Vers.
6
Parts Diagram
Parts Catalog
Exhaust unit - Challenge Version
by
Engine/Carburettor I
Electrical system - Challenge Vers.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Battery 12V-4Ah
AP8212110
Not Available
2
Battery holder
AP8230535
£34,87 Unit Price incl. VAT
3
Voltage regulator
AP8112906
Not Available
4
ECU
AP8124349
Not Available
5
CDI unit assy
AP8124050
Not Available
6
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
7
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
8
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
9
Clip M6
AP8102376
Not Available
10
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
11
Speedometer sensor cpl.
AP8124202
Not Available
12
Battery fixing snap
AP8120951
£9,06 Unit Price incl. VAT
13
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
14
Fuse 7,5A
AP8112244
Not Available
15
Main wiring harness
AP8124699
Not Available
16
Fuse 15A
AP8112176
Not Available
17
Fuse 20A
AP8112506
Not Available
18
Terminal cap
AP8144141
Not Available
19
Rubber fuse box
AP8120754
£10,61 Unit Price incl. VAT
20
Rubber fuse box
AP8112942
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
