1
Engine displacement
250
2
Model
RS
3
Year
2001
4
Trim
RS 250
5
Parts Catalog
Frame
6

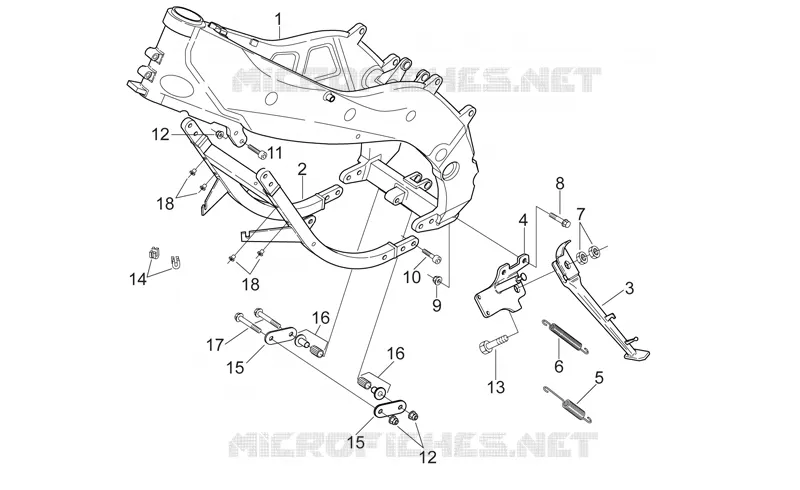

Parts Diagram
Parts Catalog
by
Saddel support - Rear foot rests
Frame
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
16
17
18
18
1
Frame
AP8146052
Not Available
2
Painted cradle
AP8146054
Not Available
3
Lateral stand
AP8135781
Not Available
4
Stand plate w. phor ctng.
AP8135513
Not Available
5
Lateral stand spring
AP8221204
£10,78 Unit Price incl. VAT
6
Internal lateral stand spring
AP8221211
£2,69 Unit Price incl. VAT
7
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
8
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
9
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
10
Hex socket screw M8x40
AP8150171
Not Available
11
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
12
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
13
Special screw M10x18*
AP8105103
£8,02 Unit Price incl. VAT
14
Rubber water cooler supp.
AP8120937
£14,45 Unit Price incl. VAT
15
Eng. connecting plate
AP8134328
Not Available
16
Silent-block lower attachment
AP8120902
Not Available
17
Screw w/ flange
AP8152294
£1,88 Unit Price incl. VAT
18
Threaded rivet M6
AP8102544
£3,68 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
