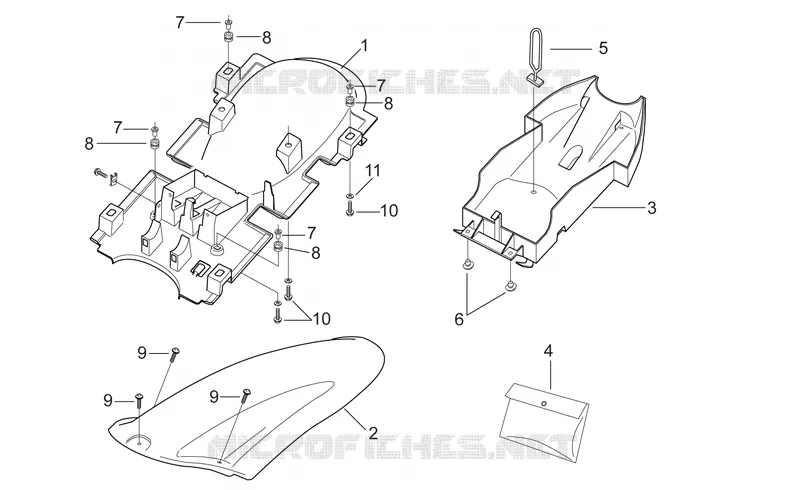

Rear body I
1
2
3
4
5
6
7
7
7
7
8
8
8
8
9
9
9
10
10
11
1
Low.rear fairing lockup
AP8138893
Not Available
2
Low mudguard, black
AP8126415
Not Available
2
Low mudguard, black
AP8156069
Not Available
3
Glove holder
AP8138917
Not Available
4
Toolkit
AP8102357
Not Available
5
Elastic
AP8120177
£6,95 Unit Price incl. VAT
6
Rubber spacer
AP8120001
£5,32 Unit Price incl. VAT
7
T bush
AP8221023
£1,64 Unit Price incl. VAT
8
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
9
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
10
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
11
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
