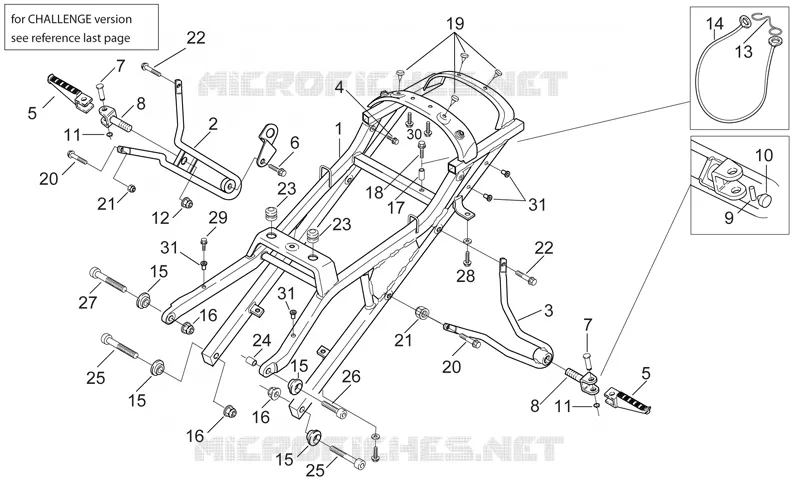

Saddel support - Rear foot rests
1
2
3
4
5
5
6
7
7
8
8
9
10
11
11
12
13
14
15
15
15
15
16
16
16
17
18
19
20
20
21
21
22
22
23
23
24
25
25
26
27
28
29
30
31
31
31
1
Saddle support
AP8146018
Not Available
2
RH footrest support
AP8146026
Not Available
3
LH footrest support cat.
AP8146024
Not Available
4
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
5
Rear footrests, pair
AP8135861
Not Available
6
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
7
Footrest pin
AP8121918
Not Available
8
Footrest support plate
AP8135617
Not Available
9
Roller D4x19,8
AP8110074
Not Available
10
Rear footrest rubber
AP8120895
£6,40 Unit Price incl. VAT
11
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
12
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
13
Helmet holder hook
AP8221206
£30,73 Unit Price incl. VAT
14
Helmet lock cable
AP8201877
£53,32 Unit Price incl. VAT
15
Bush
AP8135735
Not Available
16
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
17
Spacer *
AP8121041
£2,14 Unit Price incl. VAT
18
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
19
Rubber spacer
AP8220238
£2,48 Unit Price incl. VAT
20
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
21
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
22
Screw w/ flange
AP8152291
£1,94 Unit Price incl. VAT
23
Rubber spacer
AP8120311
£3,73 Unit Price incl. VAT
24
Helicoil insert
AP8121291
Not Available
25
Hex socket screw M8x50
AP8150277
£1,94 Unit Price incl. VAT
26
Hex socket screw M8x30
AP8150107
£1,94 Unit Price incl. VAT
27
Hex socket screw M8x45
AP8150164
£1,88 Unit Price incl. VAT
28
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
29
Threaded rivet M8
AP8102179
Not Available
30
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
31
Threaded rivet M6
AP8102544
£3,68 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
