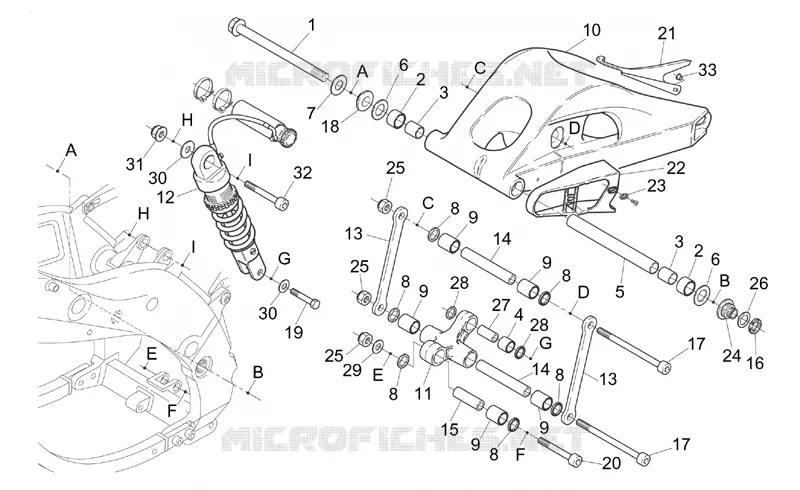

Rear shock absorber
1
2
2
3
3
4
5
6
6
7
8
8
8
8
8
8
9
9
9
9
9
10
11
12
13
13
14
14
15
16
17
17
18
19
20
21
22
23
24
25
25
25
26
27
28
28
29
30
30
31
32
33
1
Rear swing arm pin
AP8125651
Not Available
2
Needle bearing 25x32x24
AP8110070
Not Available
3
Rear sw.arm piv.bush
AP8121884
£38,72 Unit Price incl. VAT
4
Roller cage
AP8110066
£21,68 Unit Price incl. VAT
5
Rear swin.arm pin sp.
AP8121923
£14,06 Unit Price incl. VAT
6
Washer
AP8120872
Not Available
7
Curved spring washer
AP8102429
Not Available
8
Gasket ring
AP8120340
Not Available
9
Roller bearing
AP8110075
£16,26 Unit Price incl. VAT
10
Swing arm
AP8135803
Not Available
11
Double conrod comp.
AP8135508
Not Available
12
Shock absorber
AP8123332
Not Available
13
Single conrod
AP8135509
Not Available
14
Connect.rod pin
AP8121919
£30,08 Unit Price incl. VAT
15
Double connecting rod pin
AP8121885
Not Available
16
Ring nut M20x1
AP8121898
Not Available
17
Hex socket screw M12x115
AP8150442
Not Available
18
Clearance bush
AP8121925
Not Available
19
Screw
AP8150227
Not Available
20
Hex socket screw M12x75
AP8150090
Not Available
21
Chain guard
AP8131925
Not Available
22
Chain guide plate
AP8120846
Not Available
23
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
24
Washer
AP8152173
Not Available
25
Low self-locking nut M12
AP8150304
Not Available
26
Adjustment bush
AP8121899
Not Available
27
Double connecting rod pin
AP8121920
Not Available
28
Gasket ring
AP8120838
Not Available
29
Washer 13x24x2,5*
AP8150101
£1,21 Unit Price incl. VAT
30
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
31
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
32
Hex socket screw M10x105
AP8152013
£14,32 Unit Price incl. VAT
33
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
