1
Engine displacement
1000
2
Model
CAPONORD
3
Year
2005
4
Trim
ETV Capo Nord
5
Parts Catalog
Clutch I
6
Parts Diagram
Parts Catalog
Crankcases I
by
Cooling system

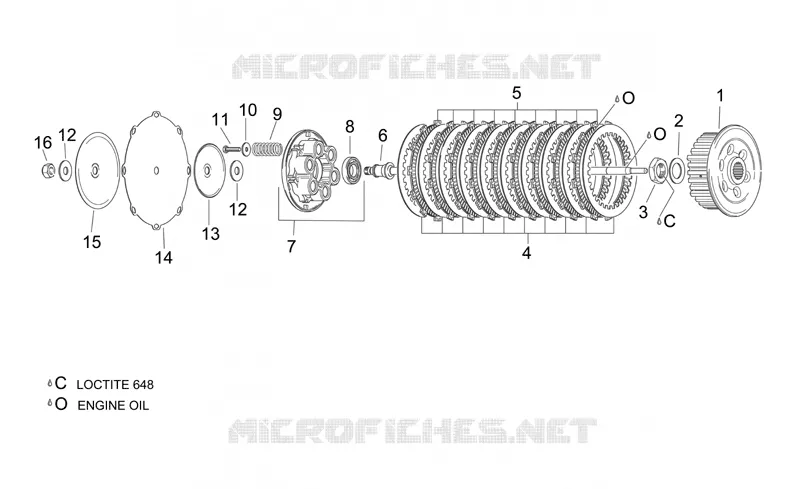

Clutch I
16
15
14
13
12
12
11
10
9
8
7
6
5
4
3
2
1
1
Clutch hub
AP0259520
Not Available
2
Spring washer 24,5x40
AP0245830
£17,12 Unit Price incl. VAT
3
Nut m24x1,5
AP0242950
Not Available
4
Steel clutch disc 9 pz.
AP8106959
Not Available
5
Lined clutch disc 8 pz.
AP8106960
Not Available
6
Clutch shaft cpl.
AP0220455
Not Available
7
Springholder plate cpl.
AP0259517
Not Available
8
Ball bearing 16004
AP0632130
Not Available
9
Clutch spring
AP0239480
Not Available
10
Washer
AP0627530
£11,60 Unit Price incl. VAT
11
Hex screw
AP0240036
Not Available
12
Washer 12,2x32x2
AP0227180
£10,10 Unit Price incl. VAT
13
Support disc
AP0627230
Not Available
14
Diaphragm
AP0260890
Not Available
15
Pressure plate
AP0627280
Not Available
16
Nut m12
AP0442130
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
