1
Engine displacement
1000
2
Model
CAPONORD
3
Year
2004
4
Trim
ETV Capo Nord
5
Parts Catalog

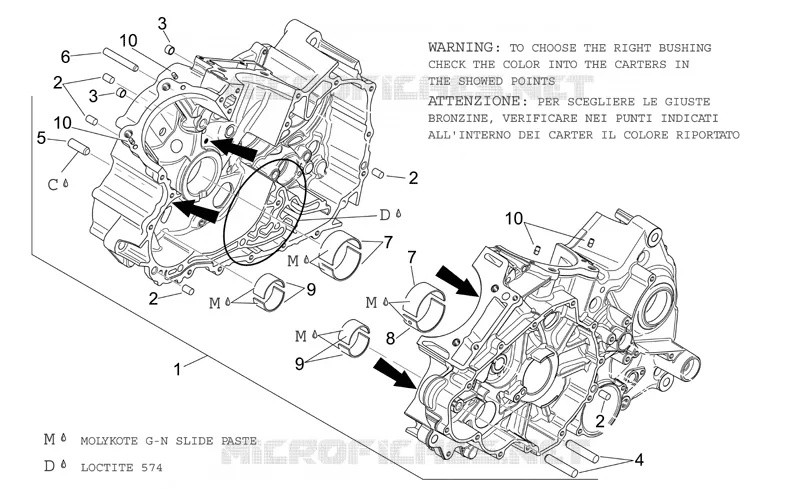

Crankcases I
6
Parts Diagram
Parts Catalog
Rear body
by
Clutch I
Crankcases I
10
10
10
9
9
8
7
7
6
5
4
3
3
2
2
2
2
1
1
Crankcase assy
AP0296961
Not Available
2
Pin M8x12
AP0632010
Not Available
3
Pin 10x8
AP0929500
Not Available
4
Pin M6x50
AP0229301
Not Available
5
Pin
AP0929930
Not Available
6
Pin
AP0229385
Not Available
7
Bushing half-shell, blue
AP0233745
Not Available
7
Bushing half-shell, red
AP0233746
Not Available
7
Bushing half-shell, yellow
AP0233748
Not Available
8
Bushing half-shell, yellow
AP0233743
Not Available
8
Bushing half-shell, blue
AP0233740
Not Available
8
Bushing half-shell, red
AP0233741
Not Available
9
Bushing half-shell, yellow
AP0233822
Not Available
9
Bushing half-shell, red
AP0233820
Not Available
9
Bushing half-shell, blue
AP0233711
Not Available
10
Pin 5x10
AP0929650
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
