1
Engine displacement
1000
2
Model
CAPONORD
3
Year
2005
4
Trim
ETV Capo Nord
5
Parts Catalog
Crankshaft II
6
Parts Diagram
Parts Catalog
Valves cover
by
Acc. - Mechanics anti-theft

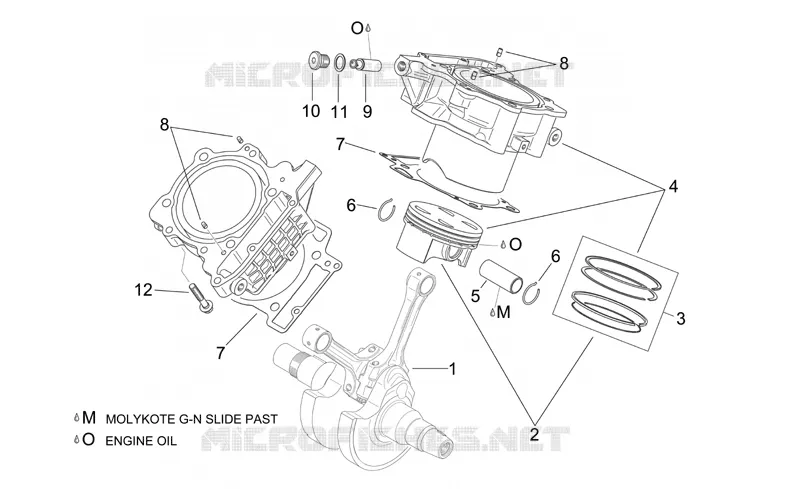

Crankshaft II
12
11
10
9
8
7
7
6
6
5
4
3
2
1
1
Crankshaft cpl.
AP0295663
Not Available
2
Piston assy 96,956 mm (B)
AP0684316
Not Available
2
Piston assy 96,944 mm (A)
AP0684315
Not Available
3
Piston ring set
AP0295858
Not Available
4
Cylinder with piston
AP0613511
Not Available
5
Piston pin 22x14x55
AP0216222
£40,94 Unit Price incl. VAT
6
Stop ring 22
AP0245436
Not Available
7
Cylinder base gasket
AP0650390
Not Available
8
Pin 5x10
AP0929650
Not Available
9
Chain tensioner assy.
AP0236252
Not Available
10
Cover
AP0640450
Not Available
11
Gasket ring 16x22
AP0430622
Not Available
12
Screw w/ flange
AP0940637
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
