1
Engine displacement
125
2
Model
RS
3
Year
2006
4
Trim
RS 125
5
Parts Catalog
Cylinder - Head - Piston
6
Parts Diagram
Parts Catalog
RH controls
by
Clutch

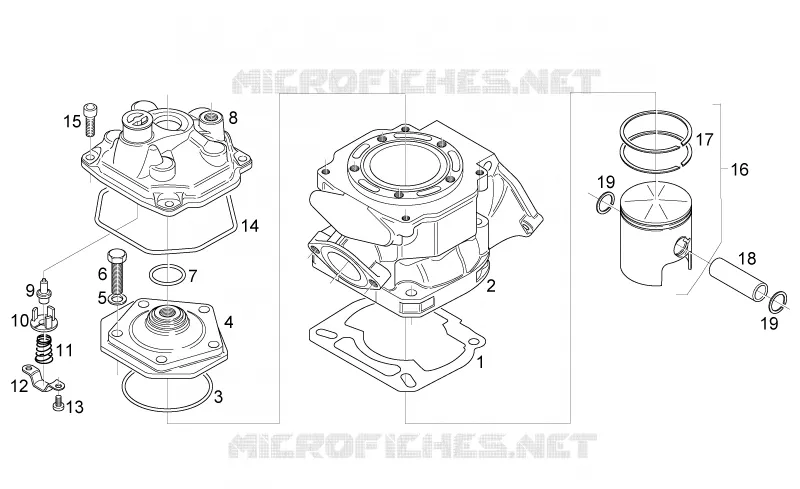

Cylinder - Head - Piston
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
1
Gasket 0,5
AP0650096
Not Available
1
Gasket 0,3
AP0650095
Not Available
1
Gasket 0,8
AP0650097
Not Available
2
Cylinder 9 holes
AP0223614
£1 616,29 Unit Price incl. VAT
3
O-ring 64x2
AP0250160
£10,72 Unit Price incl. VAT
4
Cylinder head
AP0223385
Not Available
5
Break washer A8
AP0945752
Not Available
6
Round screw M8x30
AP0940487
Not Available
7
O-ring 23,3x2,4
AP0430782
£5,32 Unit Price incl. VAT
8
Cylinder head cover
AP0613101
Not Available
9
Thermostat 70°
AP0222122
Not Available
10
Thermostat holder
AP0222175
£18,05 Unit Price incl. VAT
11
Spring
AP0239950
Not Available
12
Thermostat bow
AP0222202
Not Available
13
Special cap screw M4x8
AP0240195
Not Available
14
O-ring 105x2,5
AP0250280
£4,76 Unit Price incl. VAT
15
Hex socket screw M6x20
AP0241930
Not Available
16
Piston assy 54,01 mm
AP0294754
Not Available
16
Piston assy 53,98 mm
AP0294744
£444,43 Unit Price incl. VAT
16
Piston assy 53,99 mm
AP0294745
Not Available
16
Piston assy 54,00 mm
AP0294753
Not Available
17
Ring d54
AP0215672
£55,98 Unit Price incl. VAT
18
Piston pin
AP0216139
Not Available
19
Stop ring D15
AP0945635
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
