Grip shift FOR RS 125 FROM 2009

Free shipping for all orders to United Kingdom over £150! See conditions.

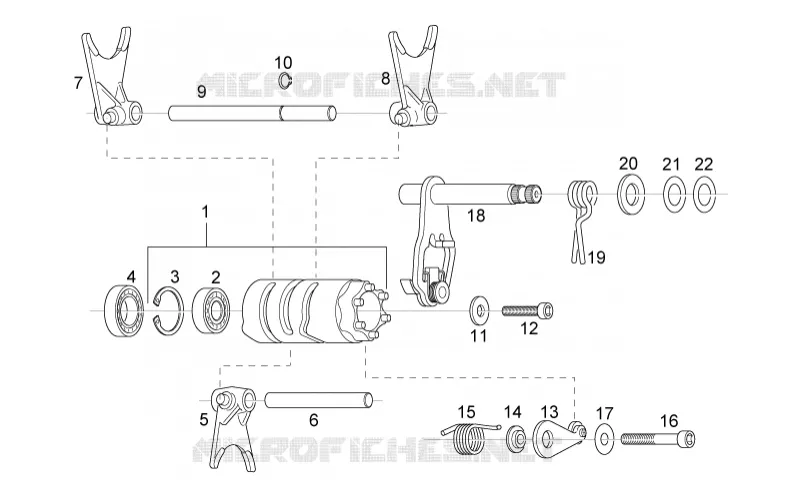

Grip shift

1

Shift cam

AP0258305

Not Available

2

Bearing 6001

AP0232402

£61,51 Unit Price incl. VAT

3

Circlip

AP0245790

Not Available

4

Ball bearing 61804

AP0632060

Not Available

5

Fork 5-6 V.ta'

AP0258138

Not Available

6

Pin M6x70

AP0229390

£13,44 Unit Price incl. VAT

7

Fork 2-3 speed

AP0258128

Not Available

8

Fork 1-4 v.ta'

AP0258118

Not Available

9

Fork shaft

AP0258200

£69,95 Unit Price incl. VAT

10

Circlip 8x0,8

AP0245570

Not Available

11

Washer 6,2x18x2

AP0827305

£12,08 Unit Price incl. VAT

12

Hex socket screw M6x30

AP0840880

£5,96 Unit Price incl. VAT

13

Index assy. lever

AP0248326

Not Available

14

Bush

AP0227710

Not Available

15

Index spring

AP0239241

Not Available

16

Hex socket screw M6x45

AP0241821

Not Available

17

Washer 6,2x18x0,5

AP0827307

£12,08 Unit Price incl. VAT

18

Gearshift shaft+pawl assy

AP0220295

Not Available

19

Spring

AP0239252

Not Available

20

Washer 13

AP0427690

£3,77 Unit Price incl. VAT

21

Thrust washer 12,5/21,5

AP0827261

Not Available

22

Thrust washer 12,5/21,5/0,5

AP0227451

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
