Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Engine
by
Water pump assy
Crankcase
1
1
2
3
4
5
5
5
5
6
7
7
8
9
9
10
10
11
12
12
13
14
15
16
16
17
18
19
20
21
22
1
Crankcase assy
AP0295388
Not Available
2
Pin 6x40
AP0229380
Not Available
3
pipe
AP0224260
Not Available
4
Roller cage 8x12x8
AP0232275
Not Available
5
Pin M8x12
AP0632010
Not Available
6
Brass union
AP0924150
Not Available
7
Bush
AP0247555
£52,01 Unit Price incl. VAT
8
Bearing 6302
AP0232291
Not Available
9
Bearing 6203
AP0932032
£39,02 Unit Price incl. VAT
10
Oil seal 28x38x7
AP0230425
Not Available
11
Oil seal 25x38x7
AP0930675
Not Available
12
Bearing 6205
AP0232765
Not Available
13
Stud bolt M8x57/20
AP0940786
Not Available
14
Gasket 6x10
AP0650130
Not Available
15
Gasket ring 6x10
AP0230415
Not Available
16
Hex socket screw M6x45
AP0241821
Not Available
17
Sensor
AP0640190
Not Available
18
Stud bolt M8x28x20
AP0241381
Not Available
19
Loctite (green) 648 5gr.
AP0899788
Not Available
20
Silastic 732 Rtv 100 gr.
AP0297386
Not Available
21
Cylinder set gasket
AP0293318
Not Available
22
Engine set gasket
AP0293314
Not Available

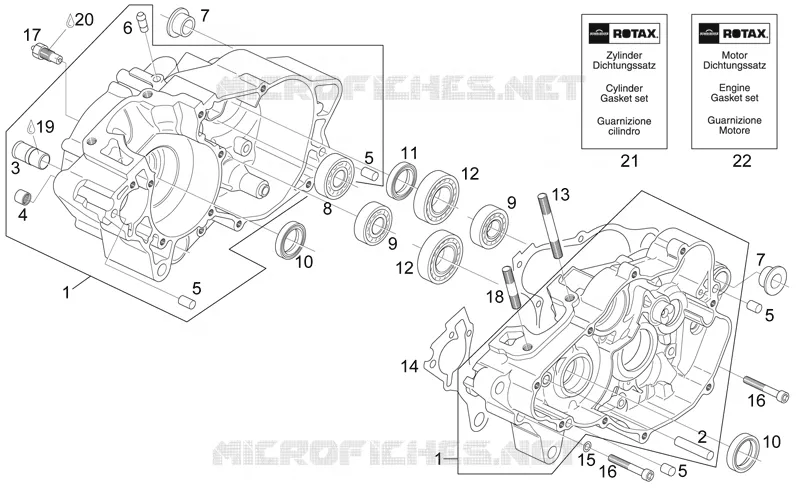

Find the detailed Crankcase APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
