1
Engine displacement
650
2
Model
PEGASO
3
Year
2006
4
Trim
Pegaso Strada - Trail IE
5
Parts Catalog

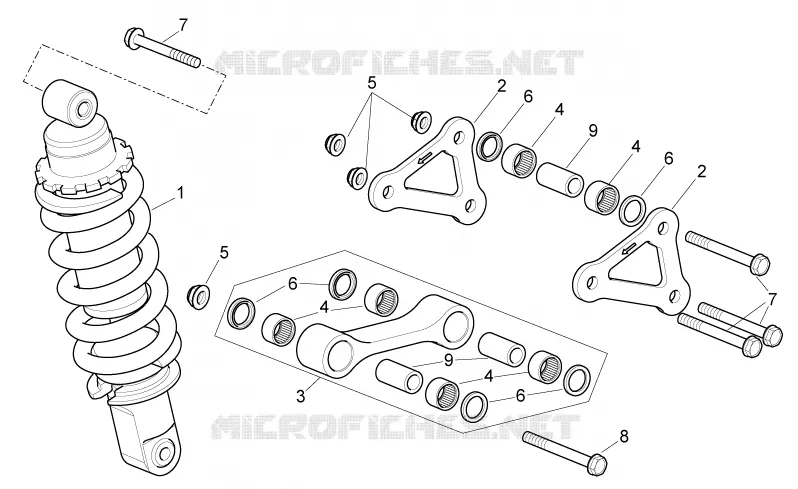

Rear shock absorber
6
Parts Diagram
Parts Catalog
Front fork-Trail Version
by
Exhaust unit
Rear shock absorber
1
2
2
3
4
4
4
4
5
5
6
6
6
6
7
7
8
9
9
1
Shock absorber
AP8163497
Not Available
1
Shock absorber
AP8163471
Not Available
2
Double conrod comp.
AP8146929
Not Available
2
Double conrod comp.
AP8146968
Not Available
3
Single conrod comp.
AP8146969
Not Available
3
Single conrod comp.
AP8146930
Not Available
4
Roller cage
AP8110065
£11,72 Unit Price incl. VAT
5
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
6
Oil seal D18x24x3
AP8110068
£16,14 Unit Price incl. VAT
7
Screw w/ flange M10x61
AP8152413
£5,92 Unit Price incl. VAT
8
Screw w/ flange M10x65
AP8152322
Not Available
9
Piston pin L=36
AP8146518
£31,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
