Front body III for Pegaso Strada - Trail IE from 2008

Free shipping for all orders to United Kingdom over £150! See conditions.

Front body III

1

Upper front mudguard, white

AP8156335

Not Available

1

Upper front mudguard, yellow

AP8156333

Not Available

1

Front mudgard front side

AP8156166

Not Available

1

Front mudgard front side Carb.

852473

Not Available

1

Upper front mudguard, grey

AP8156332

Not Available

1

Upper front mudguard, grey

AP8184823

Not Available

1

Upper front mudguard, grey

AP8156384

Not Available

2

Front mudguard rear side

AP8156187

Not Available

2

Front mudguard rear side black

852474

£41,17 Unit Price incl. VAT

3

Clip M5

AP8102375

£2,20 Unit Price incl. VAT

4

Hex socket screw M5x9

AP8150500

£2,18 Unit Price incl. VAT

5

Screw w/ flange M8x25

AP8152287

£2,63 Unit Price incl. VAT

6

Mudguard bush

AP8221218

£1,86 Unit Price incl. VAT

7

Screw w/ flange M5x16

AP8152298

£3,48 Unit Price incl. VAT

8

Internal support

AP8161212

Not Available

9

Plate

AP8154099

Not Available

10

Outer support

AP8161201

Not Available

11

Hex socket screw M5x9

AP8150500

£2,18 Unit Price incl. VAT

11

Screw w/ flange M5x16

AP8152298

£3,48 Unit Price incl. VAT

12

Curved spring washer 5,3x10x0,5

AP8150272

£3,66 Unit Price incl. VAT

13

Washer 15x5,5X1,2

AP8150382

£1,88 Unit Price incl. VAT

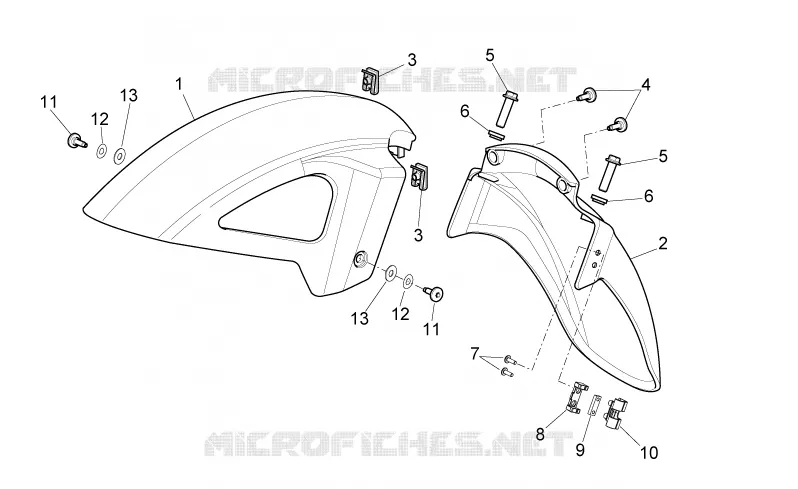

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
