1
Engine displacement
650
2
Model
PEGASO
3
Year
2006
4
Trim
Pegaso Strada - Trail IE
5
Parts Catalog
Front body I
6
Parts Diagram
Parts Catalog
Front body III
by
Controls I

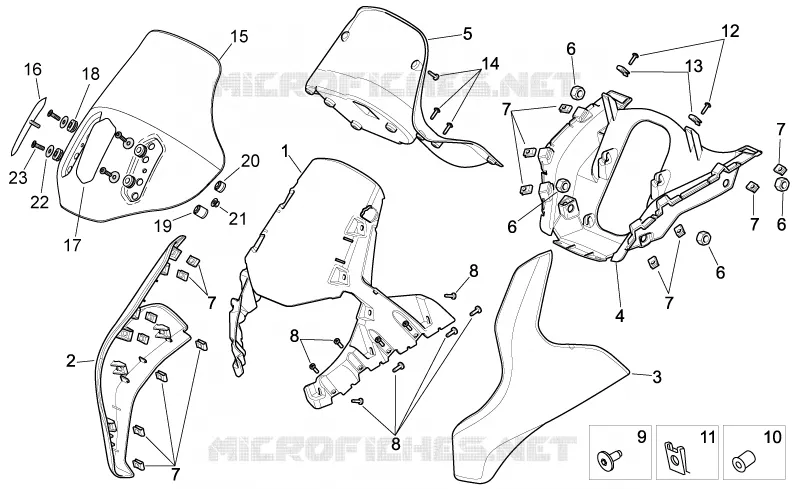

Front body I
1
2
3
4
5
6
6
6
6
7
7
7
7
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Central Windshield
AP8178787
Not Available
2
RH windshield, black
AP8184831
Not Available
2
RH windshield, white
AP8184837
Not Available
2
RH windshield, grey
AP8178788
Not Available
2
RH windshield, black
AP8184376
Not Available
2
RH windshield, yellow
AP8184436
Not Available
2
RH windshield, grey
AP8184429
Not Available
2
RH windshield, black
AP8184819
Not Available
3
LH windshield, yellow
AP8184437
Not Available
3
LH windshield, white
AP8184838
Not Available
3
LH windshield, grey
AP8178789
Not Available
3
LH windshield, black
AP8184377
£126,70 Unit Price incl. VAT
3
LH windshield, black
AP8184832
£126,70 Unit Price incl. VAT
3
LH windshield, grey
AP8184430
Not Available
3
LH windshield, black
AP8184820
Not Available
4
Under dash, black
AP8178790
Not Available
5
Dashboard panel
AP8178792
Not Available
6
Square nut M6
AP8150519
Not Available
7
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
8
Hex socket screw M4x16
AP8150493
£1,88 Unit Price incl. VAT
9
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
10
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
11
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
12
Screw 4,2x16*
AP8152351
£0,18 Unit Price incl. VAT
13
Screw clip
AP8144599
Not Available
14
Screw 4,2x16
AP8150522
£3,86 Unit Price incl. VAT
15
Windshield
AP8178791
Not Available
16
RH clamp
AP8154037
Not Available
17
LH clamp
AP8154038
Not Available
18
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
19
Spacer L=19,5
AP8161106
Not Available
20
Spacer L=14,5
AP8161107
Not Available
21
Self-locking nut M5
AP8152306
Not Available
22
Washer 5,5x15x1,6*
AP8150013
£1,61 Unit Price incl. VAT
23
Hex socket screw
AP8225369
£1,27 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
