1
Engine displacement
650
2
Model
PEGASO
3
Year
2006
4
Trim
Pegaso Strada - Trail IE
5
Parts Catalog

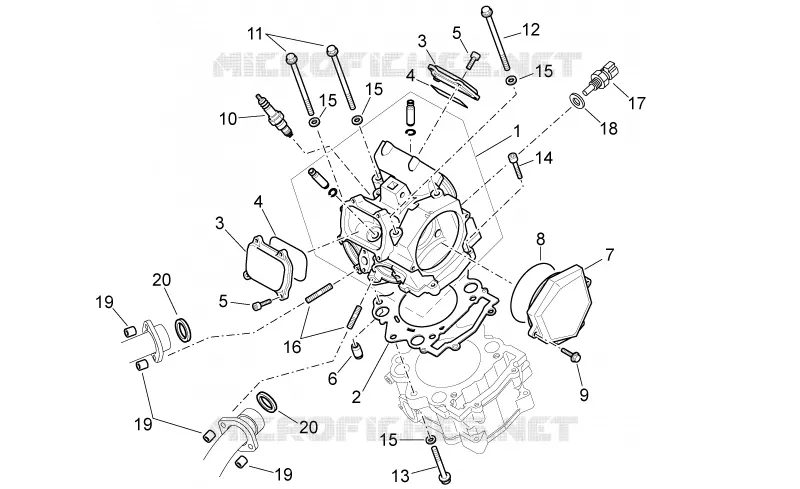

Cylinder head
6
Parts Diagram
Parts Catalog
Acc.-Top/cases, side cases I
by
Central body
Cylinder head
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
15
15
15
16
17
18
19
19
19
20
20
1
Cylinder head assy.
AP8520005
Not Available
1
Cylinder head assy.
853320
Not Available
2
Cylinder head gasket SP.0,65
AP8520111
Not Available
3
Valves cover
AP8520032
Not Available
3
Valves cover
853327
Not Available
4
Gasket ring D78x2,9
AP8520270
Not Available
5
Screw
AP8520204
Not Available
6
Dowel D10,3x12x16
AP8520122
£9,44 Unit Price incl. VAT
7
Lateral cover
AP8520033
Not Available
7
Lateral cover
853328
Not Available
8
Gasket ring D95,5x3,2
AP8520271
£7,93 Unit Price incl. VAT
9
Screw w/ flange M6x20
AP8122405
Not Available
10
Spark plug NGK CR7E
AP8520007
£17,03 Unit Price incl. VAT
11
Screw w/ flange M9x1,25x135
AP8520250
Not Available
12
Screw w/ flange M9x1,25x145
AP8520235
Not Available
13
Screw w/ flange M9x1,25x39
AP8520247
Not Available
14
Screw M6x30
AP8520231
Not Available
15
Flat washer D9,6x19x2
AP8520224
Not Available
16
Stud bolt M8x34
AP8520183
£7,10 Unit Price incl. VAT
17
Temp. Sensor H2O
AP8520151
Not Available
18
Copper washer D12,5X19X1
AP8520113
Not Available
19
Nut M8x1,25H15
AP8520180
£15,67 Unit Price incl. VAT
20
Exhaust pipe gasket
AP8520112
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
