1
Engine displacement
650
2
Model
PEGASO
3
Year
2001
4
Trim
Pegaso IE
5
Parts Catalog
Strobo rod
6

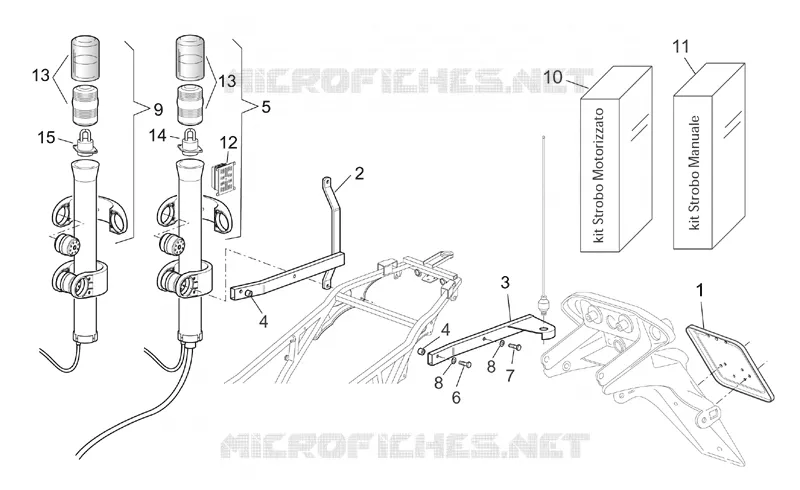

Parts Diagram
Parts Catalog
Taillight
by
Front electrical system
Strobo rod
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
13
14
15
1
Number plate holder
GU80438610
£37,73 Unit Price incl. VAT
2
Strobo support
GU80785610
Not Available
3
Antenna support
GU80789810
Not Available
4
Spacer
GU91180832
Not Available
5
Motorized column kit
GU80999510
Not Available
6
Hex socket screw M8x60
GU98680460
£5,28 Unit Price incl. VAT
7
Hex socket screw
GU98682435
£4,55 Unit Price incl. VAT
8
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
9
Manual strobo kit SONORA
GU28999580
Not Available
10
Motorized strobo kit
GU80978415
Not Available
11
Manual strobo kit
GU80978515
Not Available
12
Electronic control unit
GU03785980
Not Available
13
Strobo lens
GU28530529
Not Available
14
Motorized strobo assy.
GU28530526
Not Available
15
"Manual" strobo lamp
GU28530580
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
