Engine displacement
650
2
Model
PEGASO
3
Year
2002
4
Trim
Pegaso IE
5
Parts Catalog
Side cases
6
Parts Diagram
Parts Catalog
Additional battery kit
by
Dashboard
Side cases
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
19
20
20
21
22
23
24
25
26
26
27
1
LH connecting
AP8700846
Not Available
2
Spacer
AP8700823
Not Available
3
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
4
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
5
RH protection
GU80458310
Not Available
6
LH protection
GU80458610
Not Available
7
Rubber seal weapon
GU80489810
Not Available
8
Fixing pin
AP8700840
Not Available
9
RH suitcase
AP8796241
Not Available
9
RH suitcase
GU80482618
Not Available
9
RH suitcase
GU80482612
Not Available
9
RH suitcase
GU80482615
Not Available
9
RH suitcase
GU80482617
Not Available
10
screw
GU98370515
£2,36 Unit Price incl. VAT
11
Nut
GU92650005
Not Available
12
RH connecting
AP8700847
Not Available
13
Suitcase kit
GU80480015
Not Available
14
RH support
GU80485010
Not Available
15
LH support
GU80486510
Not Available
16
screw
GU98682525
£1,14 Unit Price incl. VAT
17
Washer 10,5x22x2,5
GU95008310
£2,48 Unit Price incl. VAT
18
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
19
screw
GU98084416
Not Available
20
Washer 8,4X15X1,5
GU95008208
£1,27 Unit Price incl. VAT
21
Rubber spacer
GU28584845
Not Available
22
LH suitcase
AP8796242
Not Available
22
LH suitcase
GU80485718
Not Available
22
LH suitcase
GU80485712
Not Available
22
LH suitcase
GU80485715
Not Available
22
LH suitcase
GU80485717
Not Available
23
Electronic control unit
GU03785980
Not Available
24
Fairlead
GU80596810
Not Available
25
Partition plane
GU80487911
Not Available
26
Lock no rotor+Key
AP8792117
Not Available
27
Rotor kit with key
AP8790114
Not Available

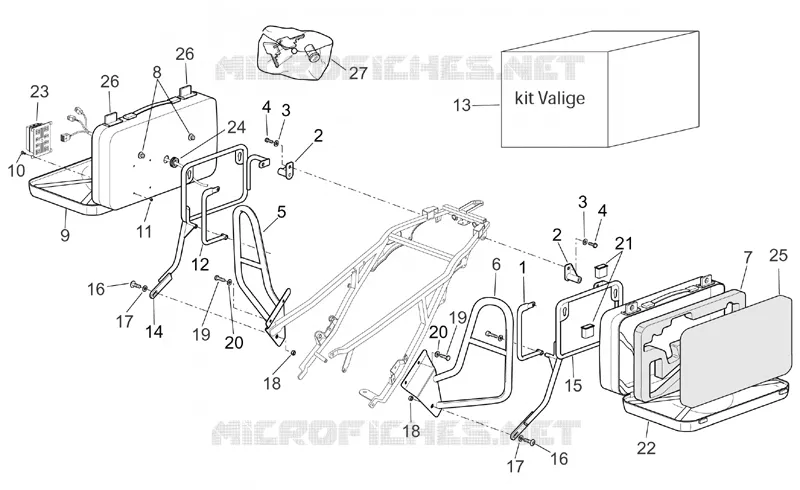

Find the detailed Side cases APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
