Engine displacement
650
2
Model
PEGASO
3
Year
2002
4
Trim
Pegaso IE
5
Parts Catalog
Aluminium top box
6
Parts Diagram
Parts Catalog
Rear body
by
Police top box
Aluminium top box
1
2
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
11
11
12
12
13
13
14
15
16
17
1
Aluminium top box
AP8178023
Not Available
2
Top box support 50L
AP8790188
Not Available
3
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
4
Spacer
AP8700823
Not Available
5
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
6
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
7
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
8
Hex socket screw M8x55
AP8150046
£1,85 Unit Price incl. VAT
9
Spacer *
AP8101108
£2,39 Unit Price incl. VAT
10
Support assy.
AP8104689
Not Available
11
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
12
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
13
Rubber spacer
AP8126702
£7,70 Unit Price incl. VAT
14
Rotor kit with key
AP8790114
Not Available
15
Lock
AP8104688
Not Available
16
Lock
AP8104687
Not Available
17
Bracket
AP8104686
Not Available

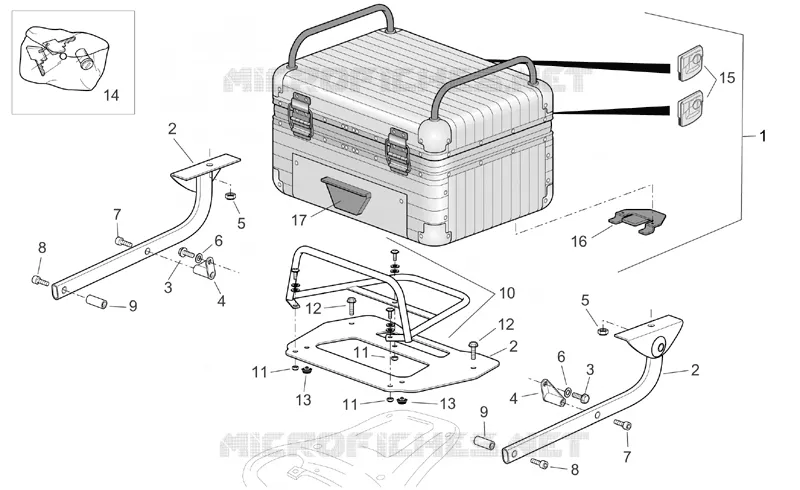

Find the detailed Aluminium top box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
