1
Engine displacement
650
2
Model
PEGASO
3
Year
2001
4
Trim
Pegaso IE
5
Parts Catalog
Clutch
6

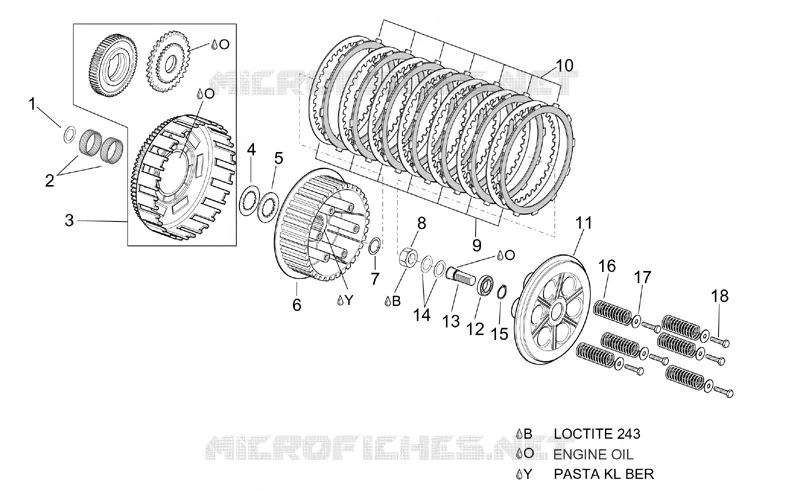

Parts Diagram
Parts Catalog
Gear box
by
Water pump
Clutch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Thrust washer 25/35/2
AP0427460
Not Available
2
Roller cage 25x29x13
AP0932930
Not Available
3
Primary transm.
AP0295442
Not Available
4
O-ring 3771
AP0250890
Not Available
5
Thrust washer 20/38/3
AP0244950
Not Available
6
Clutch hub
AP0259115
Not Available
7
Washer
AP0245325
Not Available
8
Nut m18x1,25
AP0242607
Not Available
9
Steel clutch disc 7 pz.
AP8106886
Not Available
10
Lined clutch disc 7 pc.
AP8106706
Not Available
11
Springholder plate
AP0259122
Not Available
12
Bearing 15x32x9
AP0232262
£26,03 Unit Price incl. VAT
13
Rack shaft
AP0259202
Not Available
14
Belleville spring
AP0239060
Not Available
15
Circlip d14
AP0945650
Not Available
16
Clutch spring
AP0239162
Not Available
17
Washer d6,5
AP0244020
Not Available
18
Hex screw
AP0240036
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
