Engine displacement
650
2
Model
PEGASO
3
Year
2002
4
Trim
Pegaso IE
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Controls II
by
Expansion tank
Cooling system
1
2
3
4
5
6
7
7
8
9
9
9
10
11
12
13
14
15
16
17
18
19
19
20
1
Water cooler with plug
AP8104212
Not Available
2
Water cooler filler cap
AP8104328
Not Available
3
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
4
Cable-guide
AP8120512
Not Available
5
Lower water cooler support
AP8134239
Not Available
6
Thermal switch
AP8112939
Not Available
7
Hose clip D23,5x8*
AP8101743
£3,52 Unit Price incl. VAT
8
Fan, cpl.
AP8127021
Not Available
9
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
10
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
11
Water cooler-head tube
AP8144325
£23,71 Unit Price incl. VAT
12
Water cooler bush
AP8121922
Not Available
13
Rubber spacer
AP8120594
£3,13 Unit Price incl. VAT
14
Silent-block
AP8101372
£1,88 Unit Price incl. VAT
15
Aluminium washer
AP8121837
£1,86 Unit Price incl. VAT
16
Water return hose
AP8120673
Not Available
17
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
18
Cable-guide
AP8201417
£26,51 Unit Price incl. VAT
19
Hose clip D.24,5x8,6
AP8101588
£12,65 Unit Price incl. VAT
20
Clip M6
AP8102376
Not Available

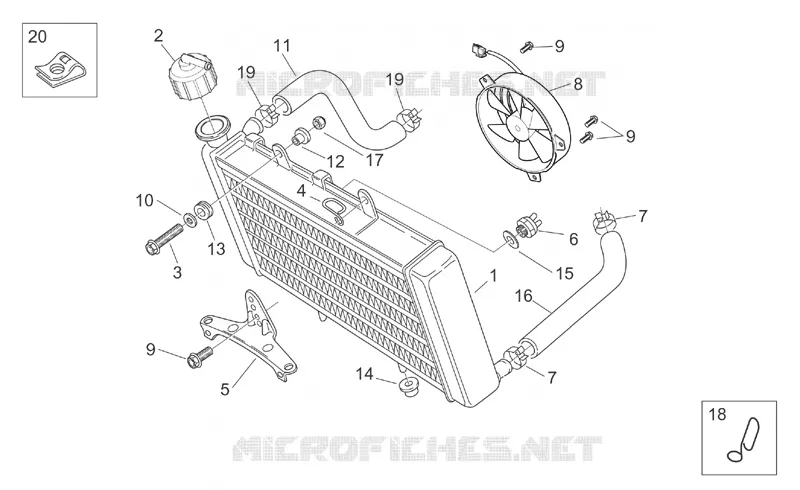

Find the detailed Cooling system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
