Engine displacement
650
2
Model
PEGASO
3
Year
2002
4
Trim
Pegaso IE
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Cylinder
by
Valves cover
Cylinder head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Cylinder head assy.
AP0613158
Not Available
2
Hex socket screw M6x25
AP0840861
Not Available
3
Break washer a6
AP0945751
Not Available
4
Circlip 11x1
AP0245710
Not Available
5
Stud bolt m8x58
AP0240362
Not Available
6
Rubber spacer
AP0247955
Not Available
7
Nut
AP0242851
Not Available
8
Hex socket screw
AP0840882
Not Available
9
Pin 3x9,8
AP0232990
Not Available
10
Exhaust valve guide
AP0253581
Not Available
11
Intake valve guide
AP0253591
Not Available
12
Intake valve guide
AP0253596
Not Available
13
Rubber spacer
AP0260310
Not Available
14
O-ring 23,3x2,4
AP0430782
£5,32 Unit Price incl. VAT
15
Cover m24x1
AP0241375
£47,88 Unit Price incl. VAT
16
Cover
AP0260960
Not Available

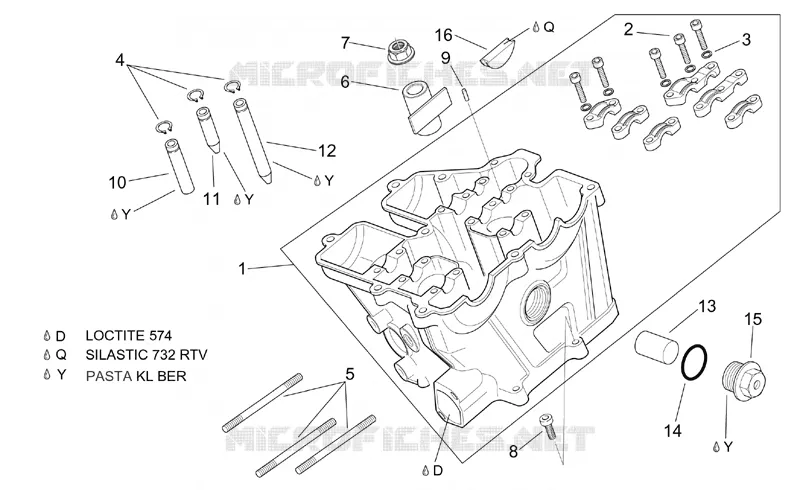

Find the detailed Cylinder head APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
