Engine displacement
650
2
Model
PEGASO
3
Year
2004
4
Trim
Pegaso IE
5
Parts Catalog
Front body III
6
Parts Diagram
Parts Catalog
Front body II
by
Fuel tank
Front body III
1
2
3
4
5
6
6
7
8
8
8
8
9
9
10
10
11
11
12
1
Sump guard support
AP8138768
Not Available
2
Captive nut M6
AP8152313
£2,48 Unit Price incl. VAT
3
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
4
Sump guard, grey
AP8149422
Not Available
5
Water cooler shield, grey
AP8149321
Not Available
6
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
7
Acoustic insulation panel
AP8117117
Not Available
8
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
9
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
10
Screw w/ flange
AP8152338
£2,34 Unit Price incl. VAT
11
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
12
Sump guard, grey
AP8168936
Not Available

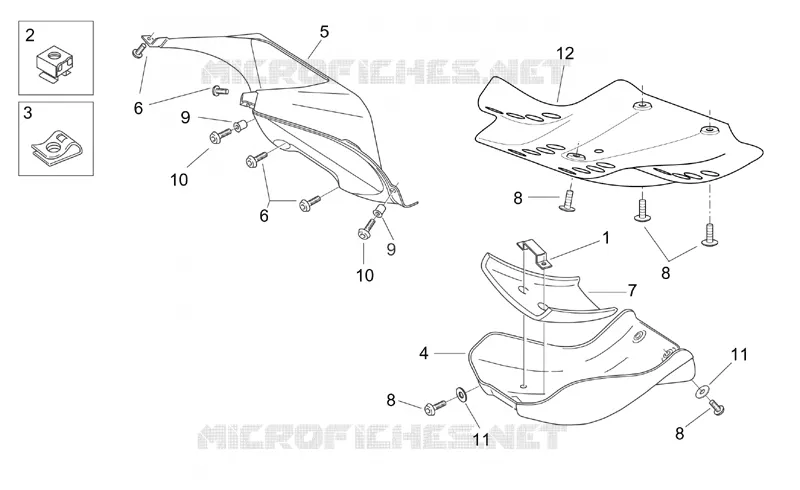

Find the detailed Front body III APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
