1
Engine displacement
650
2
Model
PEGASO
3
Year
2001
4
Trim
Pegaso IE
5
Parts Catalog

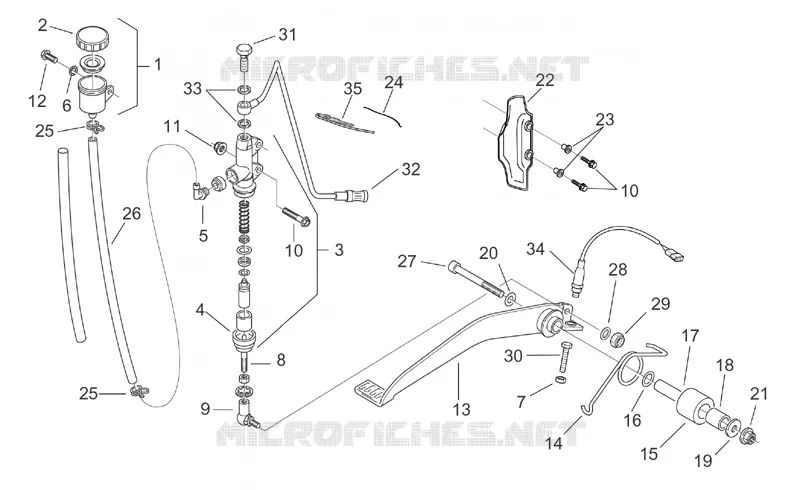

Rear master cylinder
6
Parts Diagram
Parts Catalog
Rear wheel
by
Rear brake caliper
Rear master cylinder
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
1
Brake oil tank complete
AP8113241
Not Available
2
Tank cap
AP8113553
£23,46 Unit Price incl. VAT
3
Rear master cylinder
AP8113502
Not Available
4
Rubber bellows
AP8113288
£48,95 Unit Price incl. VAT
5
Rear brake pump union
AP8213057
£28,61 Unit Price incl. VAT
6
Ext. notched washer
AP8150021
£0,06 Unit Price incl. VAT
7
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
8
Pump rod
AP8113276
Not Available
9
RH ball joint M6
AP8210007
£15,91 Unit Price incl. VAT
10
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
11
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
12
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
13
Rear brake lever
AP8146400
Not Available
14
Coil pull spring *
AP8121808
£6,10 Unit Price incl. VAT
15
Chain tensioner roller
AP8120972
Not Available
16
O-ring 3056
AP8120196
Not Available
17
Spacer 8,2x14x49,5
AP8121805
£4,28 Unit Price incl. VAT
18
Chain tensioner bush
AP8120850
Not Available
19
Washer
AP8150018
£1,88 Unit Price incl. VAT
20
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
21
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
22
Rear pump protection
AP8149782
Not Available
23
T bush
AP8121811
£1,27 Unit Price incl. VAT
24
Front fairing gasket
AP8144281
£22,16 Unit Price incl. VAT
25
Hose clamp D9,6
AP8102811
£2,51 Unit Price incl. VAT
26
Rubber pipe
AP8144151
Not Available
27
Hex socket screw
AP8150087
£1,44 Unit Price incl. VAT
28
Curved spring washer *
AP8150182
£2,48 Unit Price incl. VAT
29
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
30
Hex screw M6x30
AP8150073
£2,48 Unit Price incl. VAT
31
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
32
Rear brake hose
AP8113931
£133,56 Unit Price incl. VAT
33
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
34
Microswitch
AP8112996
£78,91 Unit Price incl. VAT
35
Cable-guide bow
AP8146456
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
