1
Engine displacement
650
2
Model
PEGASO
3
Year
1998
4
Trim
Pegaso
5
Parts Catalog
Valves
6
Parts Diagram
Parts Catalog
Valves cover
by
Valves pads
Valves
1
2
3
4
5
5
6
6
6
7
7
7
7
8
8
9
9
9
10
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
1
Intake valve 30 mm
AP0253615
Not Available
2
Intake valve 30 mm
AP0253610
Not Available
3
Exhaust valve 32 mm
AP0253620
Not Available
4
Plate
AP0253630
Not Available
5
Thrust washer 11,2/28/1
AP0227982
Not Available
6
Valve stem seal
AP0230510
Not Available
7
Ext. valve spring
AP0239150
Not Available
8
Int. valve spring
AP0838140
Not Available
9
Valve spring plate
AP0253570
Not Available
10
Valve half-cone
AP0253640
£15,91 Unit Price incl. VAT
11
Valve lifter bucket
AP0253540
Not Available
12
Hex screw
AP0841690
Not Available
13
Intake camshaft
AP0237095
Not Available
14
Exhaust camshaft
AP0237105
Not Available
15
Spring
AP0239130
Not Available
16
Counterweight
AP0231020
Not Available
17
Pin 5x23,8
AP0232910
£11,71 Unit Price incl. VAT
18
Rocker arm assy., inlet
AP0253605
Not Available
19
screw
AP0240205
Not Available
20
Nut
AP0242591
Not Available
21
Rocker arm rod
AP0253530
Not Available
22
Thrust washer 12,5/21,5/0,5
AP0227450
Not Available
23
Spring washer 12,5x21,5x0,5
AP0227455
Not Available
24
Intake timing system gear Z=36
AP0253945
Not Available
25
Exhaust timing system gear Z=36
AP0253947
Not Available
26
Spring washer
AP0445441
Not Available

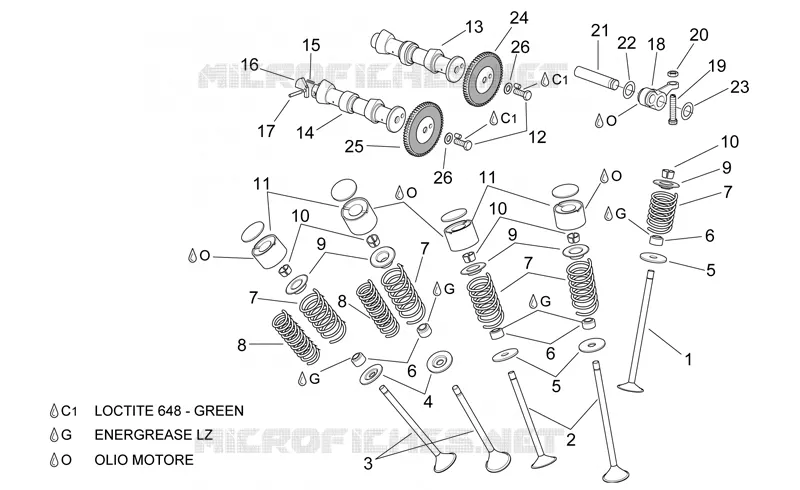

Find the detailed Valves APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
