Engine displacement
650
2
Model
PEGASO
3
Year
1998
4
Trim
Pegaso
5
Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Front fork
by
Rear shock absorber
Swing arm
1
2
3
4
5
6
7
8
8
8
8
9
10
10
11
11
12
13
14
15
16
17
18
19
19
20
21
22
23
1
Swing arm, phor al.fin
AP8135879
Not Available
2
Chain tens. plate, pair
AP8121257
£30,94 Unit Price incl. VAT
3
Upper chain guard, grey
AP8138750
Not Available
3
Upper chain guard, blue
AP8139764
Not Available
4
Rear swing arm plate
AP8134111
£22,14 Unit Price incl. VAT
5
Lower chain guard, grey
AP8144042
Not Available
5
Lower chain guard, blue
AP8139765
Not Available
6
Chain guide plate
AP8120863
£34,10 Unit Price incl. VAT
7
Rear swing arm pin
AP8125387
Not Available
8
Gasket ring
AP8120240
Not Available
9
Rear sw.arm piv.bush
AP8121121
Not Available
10
Roller cage 22x28x16
AP8110067
£16,94 Unit Price incl. VAT
11
Washer
AP8120363
Not Available
12
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
13
Ring nut M17x1
AP8150299
Not Available
14
Hex socket screw
AP8152073
£7,84 Unit Price incl. VAT
15
Curved spring washer *
AP8150297
Not Available
16
Cover
AP8220323
Not Available
17
T bush *
AP8121075
£1,96 Unit Price incl. VAT
18
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
19
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
20
Bush
AP8121156
Not Available
21
Shock absorber cover
AP8138918
Not Available
22
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
23
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT

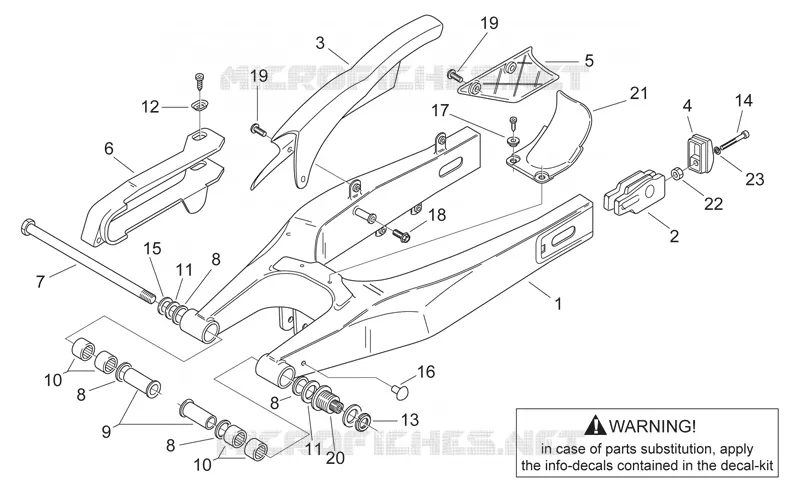

Find the detailed Swing arm APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
