1
Engine displacement
650
2
Model
PEGASO
3
Year
1998
4
Trim
Pegaso
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Oil filters
by
Drive shaft
Oil pump
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
15
16
16
17
17
18
19
19
1
Idle gear Z=31
AP0235272
Not Available
2
Idle gear Z=15/31
AP0634270
Not Available
3
Tachometer shaft
AP0220250
Not Available
4
Pin 2x11,8
AP0932740
Not Available
5
Gear Z=16
AP0634260
Not Available
6
Circlip
AP0845240
Not Available
7
Washer 6,2x12x1
AP0927945
Not Available
8
Joint m16x1/m16x1,5
AP0241070
Not Available
9
Oil seal 6x11x3/4,5
AP0930500
Not Available
10
Oil pump shaft assy.
AP0237050
Not Available
10
Oil pump shaft assy.
AP0237051
Not Available
11
Pin 4x15,8
AP0232730
Not Available
12
Internal and external rotor
AP0956277
Not Available
13
Internal and external rotor
AP0256347
Not Available
14
Oil pump cover
AP0210640
Not Available
15
screw
AP0640821
Not Available
15
screw
AP0940516
Not Available
16
Thrust washer 10,1/17/1
AP0827590
Not Available
17
Pin
AP0232430
Not Available
18
Oil pump gear Z=25
AP0234561
Not Available
19
Circlip 10x1
AP0245330
Not Available

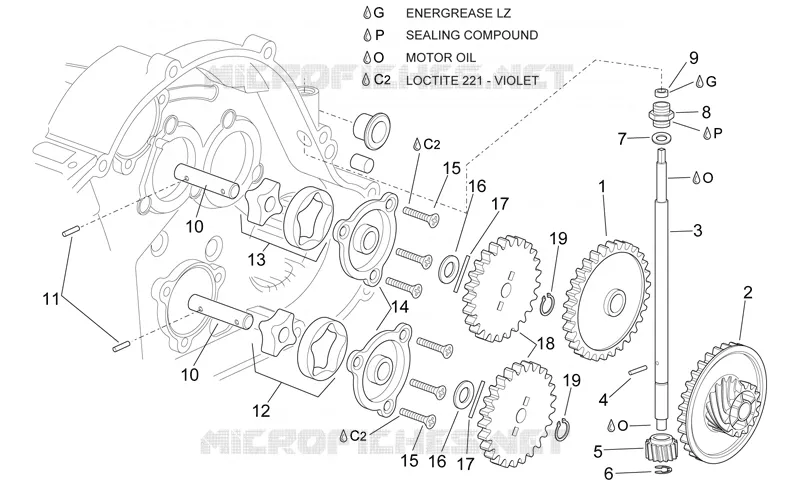

Find the detailed Oil pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
