1
Engine displacement
650
2
Model
PEGASO
3
Year
1998
4
Trim
Pegaso
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Oil pump
by
Cylinder
Drive shaft
1
2
3
3
4
4
5
6
7
8
9
10
11
11
12
13
14
1
Crankshaft cpl.
AP0295191
Not Available
2
Pin 8x24
AP0429150
Not Available
3
Balance shaft gear cpl.
AP0294476
Not Available
3
Balance shaft gear cpl.
AP0294478
Not Available
4
Transmission key 4x5
AP0246570
Not Available
5
Transmission key 6x9
AP0946015
Not Available
6
Spacer 48x67x1
AP0627030
£14,87 Unit Price incl. VAT
7
Spacer 48x67x1,5
AP0627032
Not Available
7
Spacer 48x67x1,4
AP0627035
Not Available
7
Spacer 48x67x1,25
AP0627031
Not Available
7
Spacer 48x67x1
AP0627030
£14,87 Unit Price incl. VAT
7
Spacer 48x67x1,75
AP0627033
Not Available
8
Balance shaft Z=11
AP0237997
Not Available
8
Balance shaft Z=11
AP0237999
Not Available
9
Thrust washer 24,3/41/1,5
AP0227542
Not Available
10
Spacer 20x41x1,2
AP0627072
Not Available
10
Spacer 20x41x0,8
AP0627070
Not Available
10
Spacer 20x41x1,4
AP0627073
Not Available
10
Spacer 20x41x1,0
AP0627071
Not Available
11
Bearing etn9/c3
AP0932096
Not Available
12
Break washer a22
AP0945759
£10,10 Unit Price incl. VAT
13
Nut m22x1,5
AP0842230
£22,66 Unit Price incl. VAT
14
Spring 16,9
AP0239015
£12,35 Unit Price incl. VAT

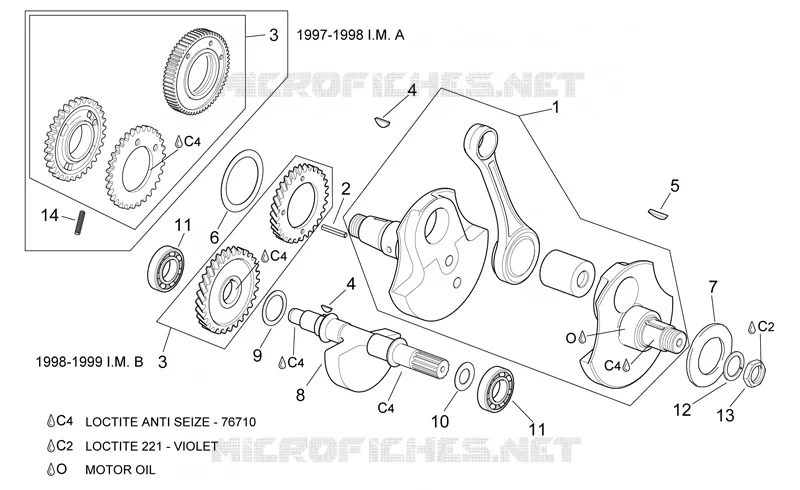

Find the detailed Drive shaft APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
