Engine displacement
650
2
Model
PEGASO
3
Year
1998
4
Trim
Pegaso
5
Parts Catalog
Electrical system II
6
Parts Diagram
Parts Catalog
Electrical system I
by
Lock hardware kit
Electrical system II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Rotary switch screw
AP8121216
Not Available
2
Front brake lever stop
AP8113522
Not Available
3
Main wiring harness
AP8124713
Not Available
3
Main wiring harness
AP8124096
Not Available
4
Spark advance resistance 4,7K
AP8124187
Not Available
5
Spark advance resistance 10K
AP8124206
£17,92 Unit Price incl. VAT
6
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
7
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
8
Front brake switch+harness
AP8124597
Not Available
9
Oil-neutral gear harness
AP8112959
Not Available
10
Relay battery wiring
AP8112857
£36,64 Unit Price incl. VAT
11
Relay-starter motor cable
AP8112830
Not Available
12
Rotary switch
AP8124094
Not Available
13
Voltage regulator
AP8112941
£102,94 Unit Price incl. VAT
14
Microswitch
AP8112996
£78,91 Unit Price incl. VAT
15
Resistence with harness
AP8112898
Not Available

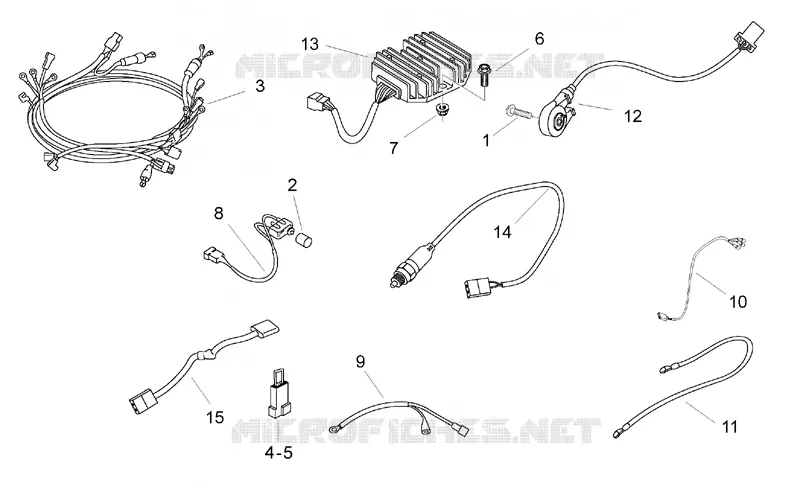

Find the detailed Electrical system II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
