1
Engine displacement
650
2
Model
PEGASO
3
Year
1998
4
Trim
Pegaso
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Gear box selector
by
Clutch
Gear box
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
1
Gear box cpl.5 speed
AP0281193
Not Available
1
Gear box cpl.5 speed
AP0281192
Not Available
2
4th pinion gear Z=22
AP0234712
Not Available
3
Thrust washer 25,6/28,5/1,5
AP0227825
Not Available
4
Circlip d25
AP0445300
Not Available
5
3rd pinion gear Z=16
AP0634330
Not Available
6
Thrust washer 21,2/27,5/1
AP0227445
Not Available
7
Roller cage 21x25x13
AP0232805
Not Available
8
5th pinion gear Z=24
AP0234720
Not Available
9
2nd pinion gear Z=16
AP0234670
Not Available
10
Driven shaft
AP0220220
Not Available
11
Roller cage 22x26x10
AP0232520
Not Available
12
Roller cage 22x26x13
AP0232530
Not Available
13
2nd wheel gear Z=28
AP0634300
Not Available
14
Thrust washer
AP0627051
Not Available
15
5th wheel gear Z=21
AP0634340
Not Available
16
3rd wheel gear Z=21
AP0234700
Not Available
17
Ring
AP0627061
Not Available
18
4th wheel gear Z=23
AP0634350
Not Available
19
Thrust washer 21,2/30/1
AP0244100
£11,71 Unit Price incl. VAT
20
Roller cage 21x25x10
AP0232742
Not Available
21
1st wheel gear Z=33
AP0634290
Not Available
22
Thrust washer 17,2/30/1
AP0227430
Not Available
23
Primary gear shaft Z=12
AP0220232
Not Available
24
O-ring 18x3,5
AP0430460
Not Available
25
Pinion Z=16
AP0236336
Not Available
26
Circlip AV 20
AP0245650
Not Available
27
Driven shaft
AP0220225
Not Available
28
Stop ring
AP0245391
£22,12 Unit Price incl. VAT
29
Nut m20x1,5
AP0242651
Not Available

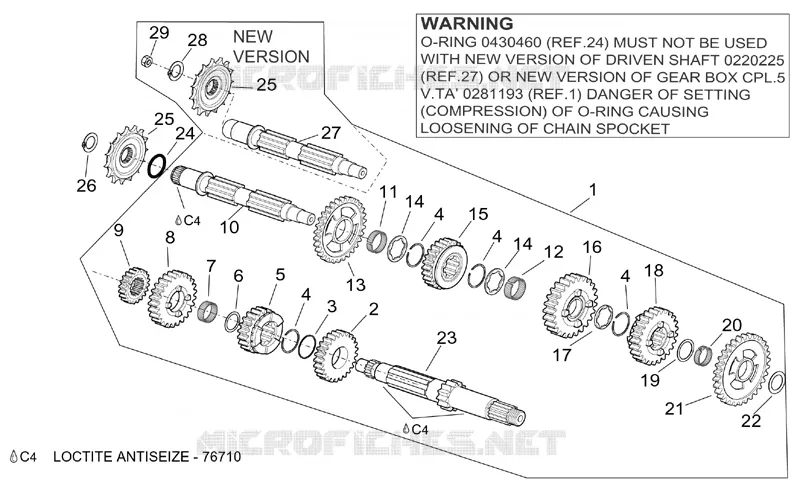

Find the detailed Gear box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
