1
Engine displacement
650
2
Model
PEGASO
3
Year
1998
4
Trim
Pegaso
5
Parts Catalog
Gear box selector
6
Parts Diagram
Parts Catalog
Chain tensioner
by
Gear box
Gear box selector
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
1
Index spring
AP0239095
Not Available
2
Index assy. lever
AP0248345
Not Available
3
Gear shaft+ratchet gear cpl.
AP0237927
Not Available
4
Spring
AP0239075
£17,74 Unit Price incl. VAT
5
Spring
AP0239082
Not Available
6
Spacer
AP0247900
Not Available
7
Thrust washer 17,2/30/1
AP0227430
Not Available
8
Shift cam
AP0258275
Not Available
9
Fork 4-5 speed
AP0258034
Not Available
10
Fork 2 speed
AP0258023
Not Available
11
Fork 1-3 speed
AP0258013
Not Available
12
Fork shaft
AP0258782
Not Available
13
Clutch shaft Z=11
AP0237022
Not Available
14
Circlip
AP0845390
Not Available
15
Oil seal 12x18x4,5
AP0250992
£25,13 Unit Price incl. VAT
16
Roller cage 8x12x8
AP0232275
Not Available
17
Roller cage 12x16x10
AP0232480
Not Available
18
Clutch relese shaft
AP0248305
Not Available
19
Hex socket screw
AP0840862
Not Available

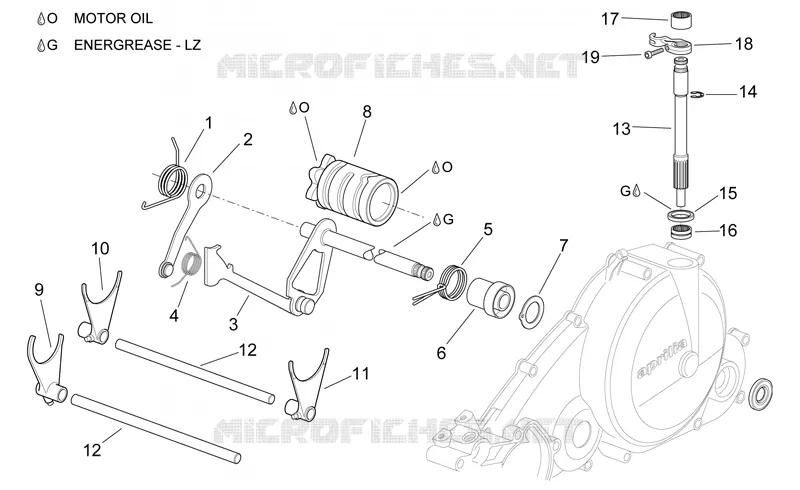

Find the detailed Gear box selector APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
