1
Engine displacement
650
2
Model
PEGASO
3
Year
1998
4
Trim
Pegaso
5
Parts Catalog
Ignition unit
6
Parts Diagram
Parts Catalog
Starter motor
by
Sealing and lubricating agents
Ignition unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Hex socket screw
AP0840882
Not Available
2
Wiring external guard plate
AP0251990
Not Available
2
Wiring external guard plate
AP0251991
Not Available
3
Wiring internal guard plate
AP0251880
Not Available
4
Special cap screw M4x8
AP0240195
Not Available
5
Acoustic insulation panel
AP0260305
Not Available
6
Panel support
AP0275035
Not Available
7
Special TE screw
AP0841680
Not Available
8
Ignition cover
AP0210388
Not Available
8
Ignition cover
AP0210386
Not Available
9
Gasket
AP0250920
Not Available
10
Ignition unit 12V-280W
AP0295170
Not Available
11
Ext. pick-up
AP0265155
Not Available
12
Special TE screw
AP0941925
£2,02 Unit Price incl. VAT
13
Hex socket screw
AP0241810
Not Available
14
Flywheel magneto hub
AP0264577
Not Available
15
Hex socket screw
AP0640980
Not Available
16
Sprag clutch
AP0958857
£526,49 Unit Price incl. VAT
17
Sprag clutch housing
AP0259192
Not Available
18
Low nut
AP0242031
Not Available
19
Sprag clutch gear
AP0634317
Not Available
20
O-ring 3771
AP0250890
Not Available
21
Plastic plug M18x1,5
AP0241801
Not Available
21
Plastic plug M18x1,5
AP0241803
Not Available
22
Break washer a22
AP0945759
£10,10 Unit Price incl. VAT
23
Nut m22x1,5
AP0842230
£22,66 Unit Price incl. VAT

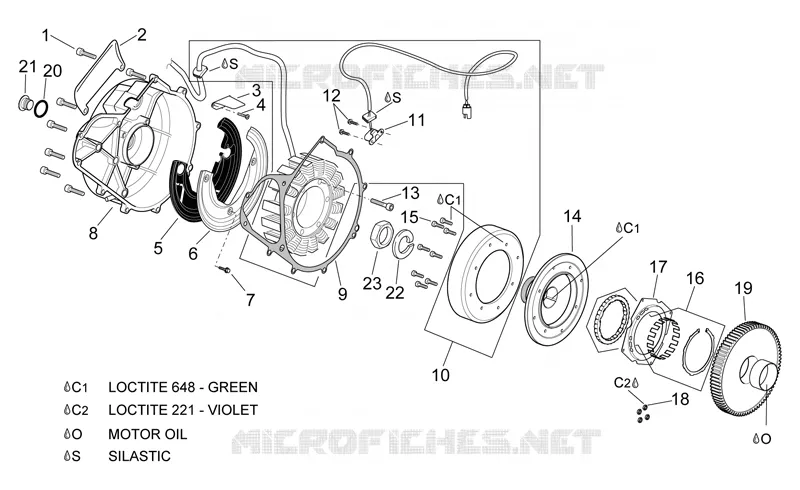

Find the detailed Ignition unit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
