1
Engine displacement
650
2
Model
PEGASO
3
Year
1993
4
Trim
PEGASO
5
Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Clutch N>S
by
Electrical system
Handlebar - Controls
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
Handlebar, snd phor.
AP8118358
£197,06 Unit Price incl. VAT
2
Handguard pair, blue
AP8138773
Not Available
2
Pair handguards, white
AP8131687
Not Available
2
Handguard pair, blue
AP8138245
Not Available
2
Handguard pair, red
AP8138244
Not Available
2
Pair handguards, black
AP8139470
Not Available
2
Pair handguards, violet
AP8138031
Not Available
2
Pair handguards, black
AP8138459
Not Available
2
Handguard pair, red
AP8138466
Not Available
3
Anti.v weight, black
AP8102579
Not Available
4
RH rearview mirror
AP8102324
£45,20 Unit Price incl. VAT
4
LH rearview mirror
AP8102325
Not Available
4
Rearview mirror
AP8102166
Not Available
5
RH handgrip washer
AP8121826
Not Available
6
Clutch lever cpl.
AP8118441
Not Available
6
Clutch control complete
AP8118345
Not Available
6
Clutch control complete
AP8118413
Not Available
7
Clutch lever
AP8118432
Not Available
7
Clutch lever
AP8118288
Not Available
8
Clutch lever adjuster
AP8118348
£11,83 Unit Price incl. VAT
9
Throttle w/out hand grip
AP8118316
Not Available
10
Starter lever
AP8118308
£22,62 Unit Price incl. VAT
11
U-bolt
AP8118349
£30,00 Unit Price incl. VAT
12
Start pushbutton
AP8118409
Not Available
13
Lock kit
AP8102512
Not Available
14
Saddle lock
AP8201564
£81,10 Unit Price incl. VAT
15
Handgrip pair, black
AP8118317
Not Available
16
Clutch cable
AP8114193
Not Available
16
Clutch cable
AP8114296
Not Available
17
Throttle cable
AP8114162
Not Available
18
Dashboard cable
AP8112813
Not Available
19
Choke cable
AP8114191
Not Available
20
Tachometer cable
AP8114190
Not Available
20
Tachometer cable
AP8114329
£20,44 Unit Price incl. VAT
21
Odometer cable
AP8114192
Not Available
21
Odometer cable
AP8114282
Not Available
22
Dashboard gear
AP8102218
Not Available
23
Cable adjuster
AP8112670
Not Available
24
Front master cilinder
AP8113584
Not Available
24
Front master cilinder
AP8113331
Not Available
24
Front master cilinder
AP8113620
Not Available
25
Pump revision kit
AP8118258
Not Available
26
Pump cover
AP8113672
£48,83 Unit Price incl. VAT
27
Rubber spacer *
AP8112599
Not Available
28
Special screw M6
AP8152078
£10,10 Unit Price incl. VAT
29
Master cyl.level window
AP8113063
Not Available
30
Brake lever U-bolt
AP8113203
£44,57 Unit Price incl. VAT
31
Front brake lever
AP8118208
Not Available
31
Front brake lever
AP8118416
Not Available
32
Brake lever pin
AP8113058
Not Available
33
Front brake lever stop
AP8113522
Not Available
33
Pad
AP8113273
Not Available
34
Main switch - steering lock
AP8112710
Not Available
35
Commutator wiring
AP8112802
Not Available
36
LH lights sel. w/wiring
AP8124173
Not Available
37
Speedometer d.80
AP8112727
Not Available
37
Speedometer MPH
AP8124177
Not Available
38
Tachometer d.80
AP8112607
Not Available
39
Thermometer d.52
AP8112608
Not Available
40
Dashboard lower support
AP8131870
Not Available
40
Dashboard lower support
AP8102505
Not Available
41
Tachometer sponge
AP8112593
Not Available
42
Speedometer sponge
AP8112592
Not Available
43
Pilot lamps holder
AP8131542
Not Available
44
Vib.damper fixing pin
AP8112601
Not Available
45
Rubber spacer
AP8112600
£3,13 Unit Price incl. VAT
46
Spacer bush
AP8121828
Not Available
47
Clutch lever screw
AP8118201
£5,96 Unit Price incl. VAT
48
Lever cover
AP8113204
Not Available

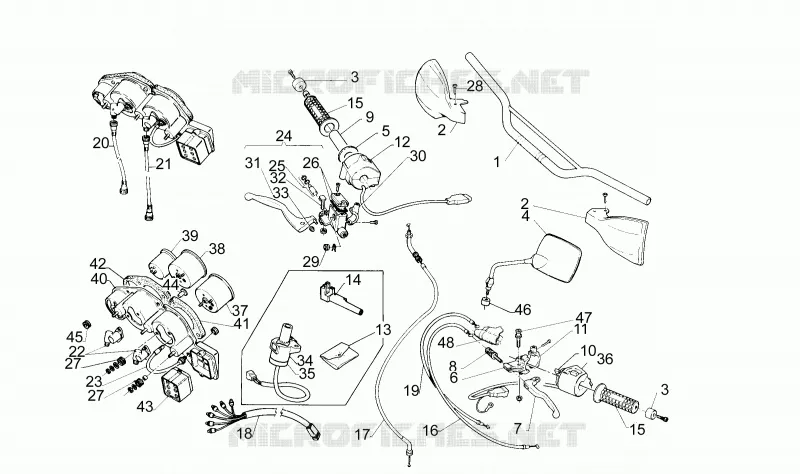

Find the detailed Handlebar - Controls APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
