Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Oil pump N>S
by
Front fork N/P
Front wheel
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Front wheel(complete)
AP8108576
Not Available
1
Front wheel
AP8108688
Not Available
2
Front hub
AP8125542
Not Available
3
Front wheel, gold 19"
AP8108655
Not Available
3
Wheel D19"
AP8108469
Not Available
4
Nipples D3,5
AP8108672
£6,40 Unit Price incl. VAT
5
RH front spoke
AP8108600
Not Available
6
LH front spoke
AP8108366
Not Available
7
Front wheel flap 19"
AP8109096
Not Available
8
Front wheel spindle
AP8125543
Not Available
9
Front brake disc, stainl. D300
AP8113485
Not Available
9
Front brake disc
AP8113465
Not Available
10
Spacer
AP8125576
Not Available
11
Odometer gear
AP8102176
£113,84 Unit Price incl. VAT
12
Hub bearing D17x40x12
AP8110045
Not Available
13
Front hub spacer
AP8125604
Not Available
14
Front brake caliper
AP8113479
Not Available
14
Front brake caliper d.30/32
AP8113482
Not Available
15
Brake caliper rev. kit
AP8113455
Not Available
16
Pads pair
AP8113456
Not Available
16
Pads pair
AP8113627
£33,22 Unit Price incl. VAT
17
Air bleed valve
AP8113549
Not Available
17
Air bleed valve
AP8213108
£28,56 Unit Price incl. VAT
18
Front brake hose
AP8113464
Not Available
18
Front brake hose
AP8113493
Not Available
18
Front brake hose
AP8113582
Not Available
18
Front brake hose
AP8113484
Not Available
19
Missing description
AP
Not Available
20
Missing description
AP
Not Available
21
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
22
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
23
Bleed valve cap
AP8113070
£13,98 Unit Price incl. VAT
23
Bleed valve cap
AP8113005
£5,94 Unit Price incl. VAT
24
Hex socket screw M6x14
AP8152156
£1,88 Unit Price incl. VAT
25
Cable-guide
AP8120428
£26,03 Unit Price incl. VAT

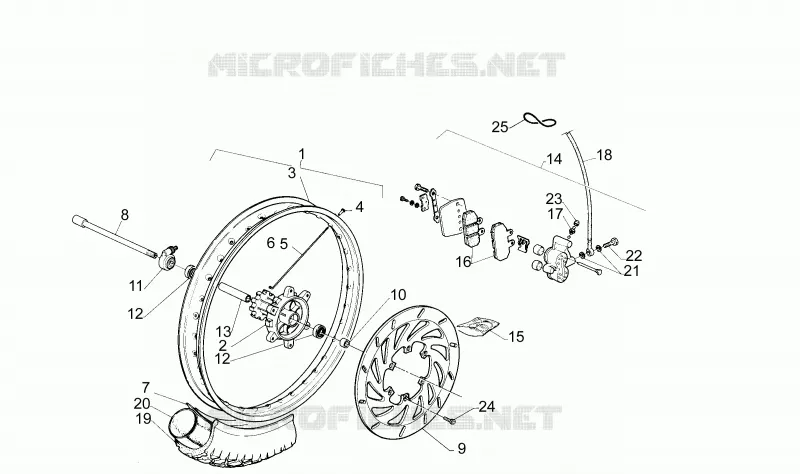

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
