1
Engine displacement
650
2
Model
PEGASO
3
Year
1993
4
Trim
PEGASO
5
Parts Catalog
Front fork N/P
6
Parts Diagram
Parts Catalog
Front wheel
by
Cdi magneto assy N>S
Front fork N/P
1
2
2
3
4
5
6
7
8
9
10
11
12
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
1
Front fork
AP8123376
Not Available
2
Sleeve cpl.
AP8123220
Not Available
3
RH hub
AP8123221
Not Available
4
LH hub
AP8123222
Not Available
5
Front fork revision kit
AP8123223
Not Available
6
Plunger, complete
AP8123224
Not Available
7
Cover EI
AP8123225
Not Available
8
Spring
AP8123226
Not Available
9
Spacer
AP8123227
Not Available
10
Spacer
AP8123228
Not Available
11
Return nut
AP8123229
Not Available
12
Sleeve plug
AP8123230
Not Available
14
Bush
AP8123232
Not Available
15
Hex socket screw 12,9
AP8123233
Not Available
16
Gasket set
AP8123234
Not Available
17
Upper dust cover
AP8120376
Not Available
18
Handlebar U-bolt cover
AP8101513
£0,97 Unit Price incl. VAT
19
Roller bearing
AP8110024
£62,09 Unit Price incl. VAT
20
Gasket ring
AP8101106
Not Available
21
Rubber spacer *
AP8120771
£4,44 Unit Price incl. VAT
22
Fork upper plate
AP8123248
Not Available
23
Stem base
AP8123249
Not Available
24
Upper U-bolt
AP8123250
Not Available
25
Ring nut
AP8123242
Not Available
26
Flanged nut
AP8123243
£22,27 Unit Price incl. VAT
27
Lower U-bolt
AP8123251
Not Available
28
Silent-block
AP8123252
Not Available
29
External dust cover
AP8123259
Not Available
29
External dust cover
AP8123290
Not Available

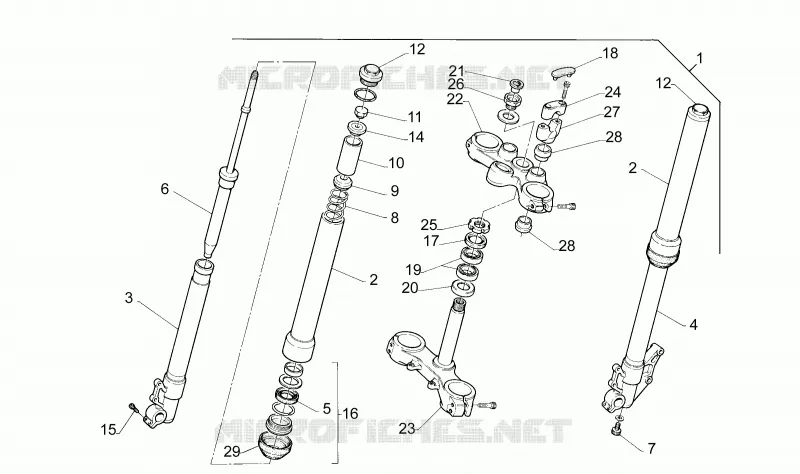

Find the detailed Front fork N/P APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
