1
Frame
AP8135453
Not Available
1
Frame, bronze
AP8135890
Not Available
1
Frame, bronze
AP8135993
Not Available
2
Screw w/ flange M8x25
AP8152264
Not Available
2
Screw w/ flange M8x20
AP8152252
Not Available
3
Washer D8x16x1,5
AP8121862
£1,01 Unit Price incl. VAT
4
Bush 18 mm
AP8121150
Not Available
5
Cradle, bronze
AP8135952
Not Available
5
Cradle, bronze
AP8135853
Not Available
5
Cradle, grey
AP8135172
Not Available
6
Footrest rubber
AP8120831
£18,66 Unit Price incl. VAT
6
Footrest rubber
AP8120766
Not Available
7
Rear footrests, pair
AP8135874
Not Available
7
Rear footrests, pair
AP8135318
Not Available
8
RH support
AP8135824
Not Available
8
RH footrest support
AP8132588
Not Available
9
Helmet lock cable
AP8201298
Not Available
10
LH footrest support
AP8132659
Not Available
10
LH support
AP8135825
Not Available
11
RH footrest
AP8135790
Not Available
11
RH footrest
AP8135397
Not Available
12
LH footrest
AP8135487
Not Available
12
LH footrest
AP8135398
Not Available
12
LH footrest
AP8135791
Not Available
13
RH front footrest bracket
AP8135756
Not Available
14
LH front footrest bracket
AP8135474
Not Available
14
LH front footrest bracket
AP8135755
Not Available
15
Spacer 6,5X10X11*
AP8221007
£1,88 Unit Price incl. VAT
16
Front footrest spring
AP8101317
£3,32 Unit Price incl. VAT
16
Footrest return spring
AP8121928
£3,17 Unit Price incl. VAT
17
T bush *
AP8121725
£1,88 Unit Price incl. VAT
18
Side stand, grey
AP8135181
Not Available
18
Lateral stand
AP8135958
Not Available
18
Lateral stand, black
AP8135793
Not Available
19
Rubber stand
AP8120502
Not Available
20
Coil pull spring *
AP8121695
£23,99 Unit Price incl. VAT
20
Lateral stand spring
AP8221197
£5,62 Unit Price incl. VAT
20
Coil pull spring *
AP8121696
£13,69 Unit Price incl. VAT
21
Special screw M10x18*
AP8105103
£8,02 Unit Price incl. VAT
22
T bush *
AP8121075
£1,96 Unit Price incl. VAT
22
Spacer
AP8221017
£4,52 Unit Price incl. VAT
23
Fan support
AP8138103
Not Available
24
Luggage rack, alum.
AP8131877
Not Available
24
Luggage rack, grey
AP8131708
Not Available
24
Luggage rack, bronze
AP8138279
Not Available
25
Electric fan
AP8112819
Not Available
25
Fan
AP8124335
Not Available
26
T bush *
AP8121679
£2,39 Unit Price incl. VAT
27
Oil filler cap w/ dipstick
AP8102393
£22,56 Unit Price incl. VAT
28
O-ring 4087
AP8120280
£1,01 Unit Price incl. VAT
29
Chain tensioner roller
AP8101704
Not Available
30
Spacer *
AP8120568
£2,18 Unit Price incl. VAT
31
Front bow
AP8135350
Not Available
32
Rubber spacer
AP8120594
£3,13 Unit Price incl. VAT
33
Rubber spacer
AP8220150
£3,13 Unit Price incl. VAT
34
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
35
Silent-block
AP8101372
£1,88 Unit Price incl. VAT
36
Lower water cooler support
AP8134239
Not Available
37
Rubber spacer *
AP8201124
£7,40 Unit Price incl. VAT
38
Water cooler
AP8102197
Not Available
39
Rad cap w/ vent
AP8201463
Not Available
40
Expansion tank
AP8131740
Not Available
41
Water rad.feed pipe
AP8120833
£21,41 Unit Price incl. VAT
42
Bush
AP8121156
Not Available
43
Spacer 8,2x14x49,5
AP8121805
£4,28 Unit Price incl. VAT
44
Water return hose
AP8120672
Not Available
45
RH anchor plate
AP8134190
Not Available
46
Water return hose
AP8120673
Not Available
47
Rubber spacer *
AP8120223
£2,74 Unit Price incl. VAT
48
Thermal switch
AP8112677
Not Available
49
Oil filter
AP8102392
Not Available
50
Shock absorber support
AP8135179
Not Available
51
Double conrod support
AP8135945
Not Available
51
Double conrod support
AP8135177
Not Available
52
Saddle support, bronze
AP8135851
Not Available
52
Saddle support, grey
AP8135175
Not Available
52
Saddle support, bronze
AP8135949
Not Available
53
LH anchor plate
AP8134234
Not Available
54
Spacer *
AP8121092
Not Available
55
Bush
AP8221026
Not Available
56
Spacer *
AP8101108
£2,39 Unit Price incl. VAT
57
Footrest rubber
AP8120770
Not Available
58
Spacer bush
AP8121839
Not Available
59
Fan cover
AP8135446
Not Available
60
pipe D10x18
AP8144016
Not Available
61
Hose clamp D16-24x8*
AP8101573
£2,95 Unit Price incl. VAT
62
Footrest pin
AP8121717
Not Available
63
Stand plate
AP8134264
Not Available
64
Stand plate, bronze
AP8138722
Not Available
65
Rotary switch
AP8124094
Not Available

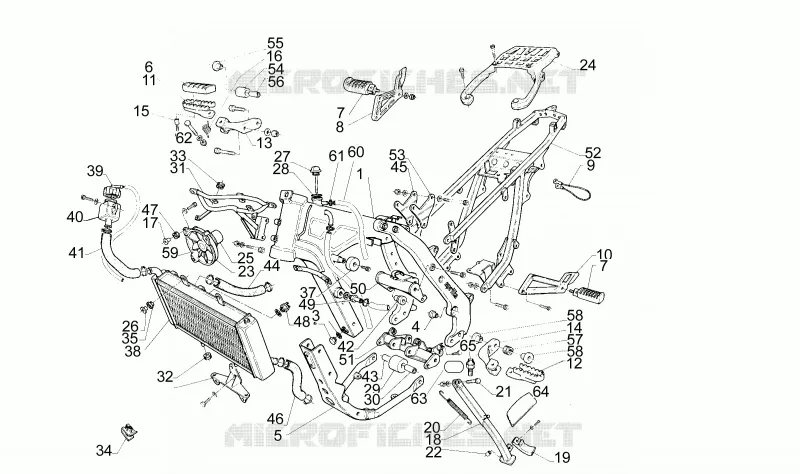

Find the detailed Frame APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
