1
Engine displacement
650
2
Model
PEGASO
3
Year
1992
4
Trim
PEGASO
5
Parts Catalog
Cdi magneto assy N>S
6
Parts Diagram
Parts Catalog
Front fork N/P
by
Special tools T

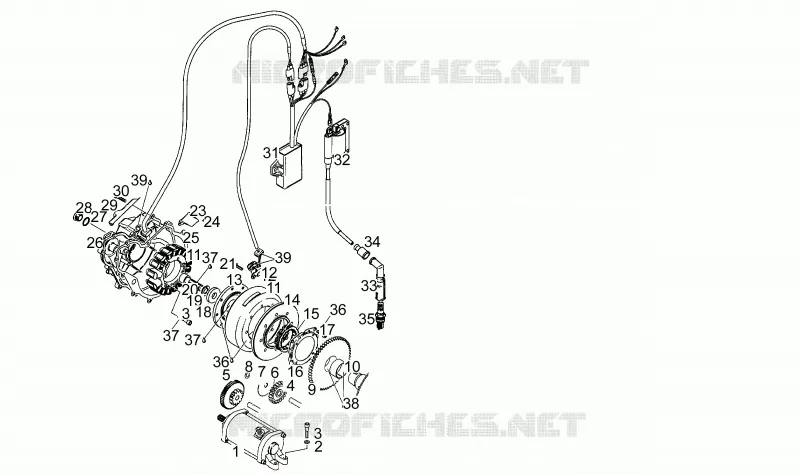

Cdi magneto assy N>S
1
2
3
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
37
37
38
39
39
1
Starter motor cpl.
AP0294351
Not Available
2
Break washer a6
AP0945751
Not Available
3
Hex socket screw M6x30
AP0840880
£5,96 Unit Price incl. VAT
4
Intermediate gear Z=21
AP0234652
Not Available
5
Intermediate gear
AP0234751
Not Available
6
Thrust washer
AP0227620
Not Available
7
Spacer
AP0247780
Not Available
8
Thrust washer 10,1/17/1
AP0827590
Not Available
9
Neutral gear Z=55
AP0234612
Not Available
10
Bush
AP0233650
Not Available
11
Cdi magneto assy
AP0294360
Not Available
12
Pick-up
AP0265150
Not Available
13
Flywheel magneto hub
AP0264570
Not Available
14
Sprag clutch housing
AP0259240
Not Available
15
Sprag clutch 51,710x68,377x13
AP0958856
Not Available
16
Sprag clutch housing
AP0259192
Not Available
17
Hex socket screw
AP0240400
Not Available
18
Washer
AP0227670
Not Available
19
Washer
AP0945755
Not Available
20
Hex socket screw M14x1,50x45
AP0240680
Not Available
21
Special TE screw
AP0941925
£2,02 Unit Price incl. VAT
23
Wiring internal guard plate
AP0251880
Not Available
24
Special cap screw M4x8
AP0240195
Not Available
25
Gasket
AP0230321
Not Available
26
Flywheel cover cpl.
AP0210383
Not Available
27
O-ring 18x1,5
AP0230400
£1,21 Unit Price incl. VAT
27
O-ring 3771
AP0250890
Not Available
28
Cover M18x1,5
AP0241800
Not Available
29
Cable-guide
AP0251985
Not Available
30
Hex socket screw M6x25
AP0840861
Not Available
31
ECU
AP0264545
Not Available
32
Coil
AP0264465
Not Available
33
Sparkplug cap
AP0264861
£88,10 Unit Price incl. VAT
34
Rubber spacer
AP0260700
Not Available
35
Spark plug NGK D8EA
AP0297540
Not Available
36
Loctite (green) 648 5gr.
AP0899788
Not Available
37
Loctite (violet) 221 10cc.
AP0899785
Not Available
38
Molykote G-N 50gr.
AP0297433
Not Available
39
Silastic 732RTV 100gr.
AP0297385
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
