Parts Catalog
Clutch cover
6
Parts Diagram
Parts Catalog
Timing system
by
Oil filter
Clutch cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
25
26
26
27
27
28
28
29
30
31
32
35
38
39
40
41
42
42
43
1
Complete clutch cover
AP0210116
Not Available
2
Pin
AP0229230
Not Available
3
Bushing
AP0224230
Not Available
4
Oil seal
AP0930715
Not Available
5
Oil seal
AP0831260
Not Available
6
Ball 12 MM
AP0232150
Not Available
7
Cam lever
AP0259185
Not Available
8
screw
AP0240310
Not Available
9
Nut M8
AP0942671
Not Available
10
Thrust washer 8,1/15
AP0227945
Not Available
11
Spring
AP0239905
Not Available
12
Special TE screw
AP0841680
Not Available
13
Tachometer shaft
AP0237840
Not Available
14
Seeger
AP0945710
Not Available
15
Pin 2x11,8
AP0932740
Not Available
16
Gear Z=17
AP0234170
Not Available
17
Washer 6,2x12x1
AP0927945
Not Available
18
O-ring 12-1,5 mm
AP0430600
Not Available
19
Joint m16x1/m16x1,5
AP0241070
Not Available
20
Oil seal 6x11x3/4,5
AP0930500
Not Available
21
Gasket
AP0250380
Not Available
22
Hex socket screw
AP0241811
Not Available
23
Gasket ring 6x10
AP0230415
Not Available
25
Hex socket screw M6x30
AP0840880
£5,96 Unit Price incl. VAT
26
O-ring
AP0230405
Not Available
27
Cover M18x1,5
AP0241800
Not Available
28
Thrust washer 12,5/21,5
AP0827261
Not Available
29
Intermediate gear Z=81/15
AP0234053
Not Available
30
Cover
AP0212960
Not Available
31
O-ring
AP0230310
Not Available
32
Hex socket screw
AP0840511
Not Available
35
Break washer a6
AP0945751
Not Available
38
Support plate
AP0251915
Not Available
39
Hex socket screw M6x25
AP0840861
Not Available
40
Starter motor
AP0294357
Not Available
41
Hex socket screw M6x30
AP0840880
£5,96 Unit Price incl. VAT
42
Silastic 732RTV 100gr.
AP0297385
Not Available
43
Loctite (violet) 221 10cc.
AP0899785
Not Available

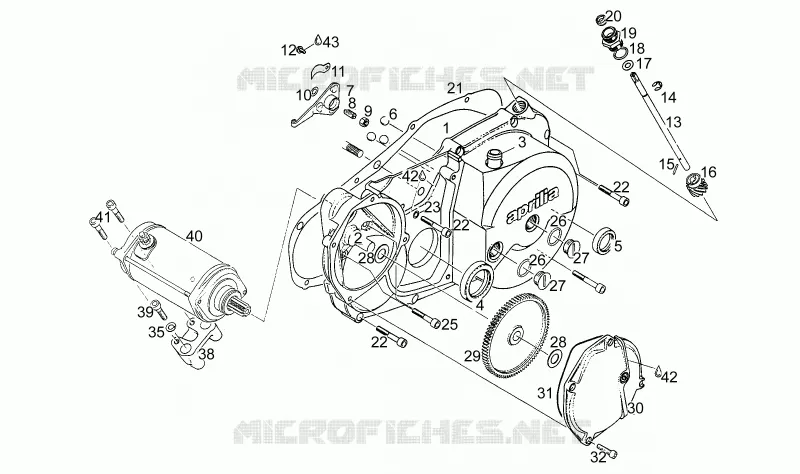

Find the detailed Clutch cover APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
