1
Engine displacement
600
2
Model
PEGASO
3
Year
1991
4
Trim
PEGASO
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Oil pump
by
Valves
Cylinder head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
36
37
38
39
40
41
41
42
43
43
43
44
1
Cylinder head assy.
AP0223602
Not Available
2
Roller cage
AP0232920
Not Available
3
Starting shaft 248°
AP0237805
Not Available
4
Bearing
AP0932432
Not Available
5
Thrust washer sp.1 mm
AP0927222
Not Available
6
Oil seal
AP0850055
Not Available
7
Seeger
AP0945690
Not Available
8
O-ring
AP0230405
Not Available
9
Thrust washer
AP0247420
Not Available
10
Cover m16x1,5
AP0240230
Not Available
11
Stud bolt M8x94
AP0240417
Not Available
12
Stud bolt M8x119
AP0240423
Not Available
13
Nut M8
AP0242700
Not Available
14
Thrust washer
AP0247720
Not Available
15
Nut M8
AP0242201
Not Available
16
Stud bolt
AP0240360
Not Available
17
Stud bolt
AP0940000
Not Available
18
Valve cover
AP0212555
Not Available
19
Oil seal
AP0230690
Not Available
20
Spring
AP0239800
Not Available
21
Shaft pin
AP0237655
Not Available
22
Rivet
AP0229170
Not Available
23
Disc
AP0231010
Not Available
24
Spring
AP0239790
Not Available
25
Screw w/ flange
AP0240385
Not Available
26
O-ring
AP0230860
Not Available
27
Valve cover cpl.
AP0212546
Not Available
28
Break washer a6
AP0945751
Not Available
29
screw
AP0940561
Not Available
30
Pin
AP0229160
Not Available
36
Rubber spacer
AP0260680
Not Available
37
Rubber spacer 5 el.
AP0260922
Not Available
38
Rubber spacer 7 el.
AP0260924
Not Available
39
Exhaust valve guide
AP0253116
Not Available
40
Intake valve guide
AP0253117
Not Available
41
Circlip
AP0245440
Not Available
42
Silastic 732RTV 100gr.
AP0297385
Not Available
43
Molykote G-N 50gr.
AP0297433
Not Available
44
Loctite (violet) 221 10cc.
AP0899785
Not Available

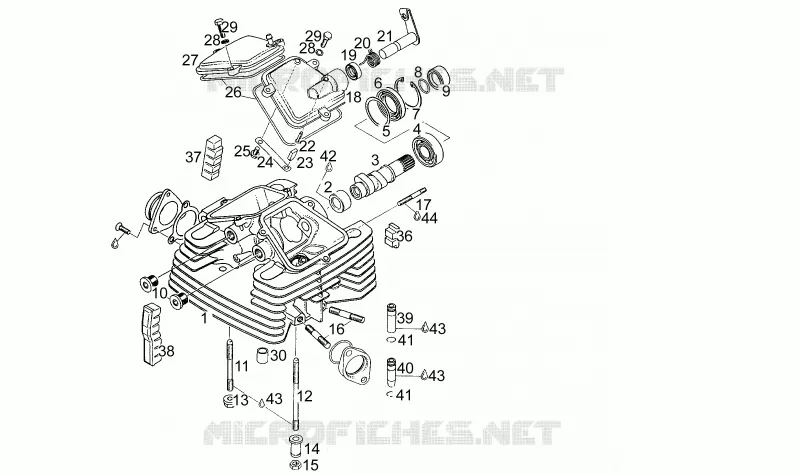

Find the detailed Cylinder head APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
