1
Engine displacement
600
2
Model
PEGASO
3
Year
1991
4
Trim
PEGASO
5
Parts Catalog
Drive shaft - Cylinder
6
Parts Diagram
Parts Catalog
Electrical system
by
Handlebar - Controls
Drive shaft - Cylinder
1
2
3
3
4
5
6
6
6
7
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
36
37
38
39
40
40
41
42
43
43
1
Crankshaft cpl.
AP0294077
Not Available
2
Spacer
AP0247390
Not Available
3
Ball bearing
AP0832235
Not Available
4
Thrust washer sp.0,2 mm
AP0927401
Not Available
4
Thrust washer 0,1 mm
AP0927400
Not Available
5
Transmission key 6x9
AP0946015
Not Available
6
Transmission key 4x5
AP0246570
Not Available
7
Balance shaft driven gear
AP0293578
Not Available
10
Compression spring 17,2
AP0239010
Not Available
11
Bush
AP0247680
Not Available
12
Bush 36x38x3,5
AP0233550
Not Available
13
Clutch drum
AP0293485
Not Available
14
Bearing
AP0932095
Not Available
15
Balance shaft
AP0237880
Not Available
16
Thrust washer 0,5 mm
AP0944462
Not Available
16
Thrust washer 0,15 mm
AP0944465
Not Available
16
Thrust washer 20,5x30 sp.03mm
AP0944461
Not Available
17
Sprag clutch 45,665x62,33
AP0259075
Not Available
18
Seeger
AP0245620
Not Available
19
Bush
AP0232165
Not Available
20
Roller cage
AP0232890
Not Available
21
Neutral gear
AP0234353
Not Available
22
Thrust washer
AP0227230
Not Available
23
Washer
AP0945757
Not Available
24
Nut
AP0242790
Not Available
25
Intermediate gear Z=81/15
AP0234053
Not Available
26
Piston assy A93,95-B93,96
AP0294245
Not Available
27
Oil scraper ring 94
AP0215450
Not Available
28
Conical ring 94 mm
AP0215440
Not Available
29
Ring 94 mm
AP0215580
Not Available
30
Piston pin
AP0216170
Not Available
31
Stop ring 22
AP0245431
£12,13 Unit Price incl. VAT
32
Gasket 0,5 mm
AP0230825
Not Available
33
Cylinder A=3,960-B=93,972
AP0213753
Not Available
34
O-ring
AP0250290
Not Available
35
O-ring 20-3,5 mm
AP0250430
Not Available
36
Rubber spacer 2 el.
AP0260920
Not Available
37
Rubber spacer 5 el.
AP0260922
Not Available
38
Rubber spacer 7 el.
AP0260924
Not Available
39
Connecting rod
AP0293394
Not Available
40
Loctite Anti Seize 50ml.15378
AP0297434
Not Available
41
Molykote G-N 50gr.
AP0297433
Not Available
42
Loctite (orange) 574
AP0899784
Not Available
43
Loctite (violet) 221 10cc.
AP0899785
Not Available

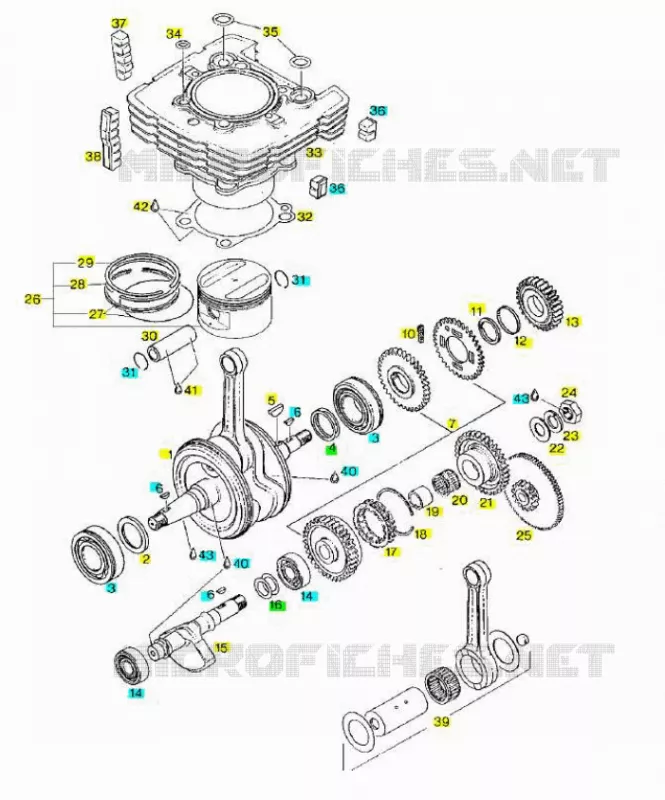

Find the detailed Drive shaft - Cylinder APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
