1
Primary gear shaft 1 v.ta' - Z=10
AP0237970
Not Available
2
Roller cage 20x24x10
AP0232662
Not Available
3
Gear 6 v.ta' Z=22
AP0234887
Not Available
4
Thrust washer 24,2x27
AP0227470
Not Available
5
Circlip 24 mm
AP0245340
Not Available
6
Gear 3-4 v.ta' Z=19/16
AP0235262
Not Available
7
Thrust washer 20,2x27,5
AP0227440
Not Available
8
Gear 5 v.ta' Z=21
AP0234869
Not Available
9
Gear 2 v.ta' Z=13
AP0234826
Not Available
10
Driven shaft
AP0237894
Not Available
11
Roller cage 21x25x10
AP0232742
Not Available
12
Gear 2 v.ta' Z=30
AP0234818
Not Available
13
Thrust washer 22x30x1,8
AP0227460
Not Available
14
Gear 5 v.ta' Z=23
AP0234878
Not Available
15
Gear 3 v.ta' Z=27
AP0234838
Not Available
16
Gear Z=25
AP0234858
Not Available
17
Gear 6 v.ta' Z=21
AP0234993
Not Available
18
Thrust washer
AP0944468
Not Available
19
Gear 1 v.ta' Z=34
AP0234808
Not Available
20
Thrust washer 17,2/30/1
AP0227430
Not Available
21
O-ring 18x3,5
AP0430460
Not Available
22
Circlip AV 20
AP0245650
Not Available
23
Gearshift shaft+pawl assy
AP0220066
Not Available
24
Spring
AP0239835
Not Available
25
Index assy. lever
AP0248255
Not Available
26
Thrust washer 12,5/21,5
AP0827261
Not Available
27
Index spring
AP0239820
Not Available
28
Spring
AP0239645
Not Available
29
Spacer bush
AP0247690
Not Available
31
Shift cam
AP0258937
Not Available
32
Fork 2-3 v.ta'
AP0258903
Not Available
33
Fork 5-6 v.ta'
AP0258913
Not Available
34
Fork 1-4 v.tà
AP0258893
Not Available
35
Fork shaft
AP0258880
Not Available
36
Pinion
AP0236062
£37,80 Unit Price incl. VAT
36
Pinion Z=14
AP0236061
Not Available
36
Pinion Z=16
AP0236063
Not Available
37
Gear lever
AP0248232
Not Available
38
Loctite Anti Seize 50ml.15378
AP0297434
Not Available
39
Lithium-Base grease 250gr.
AP0897330
Not Available
40
Gear box assy 6 speeds
AP0281189
Not Available

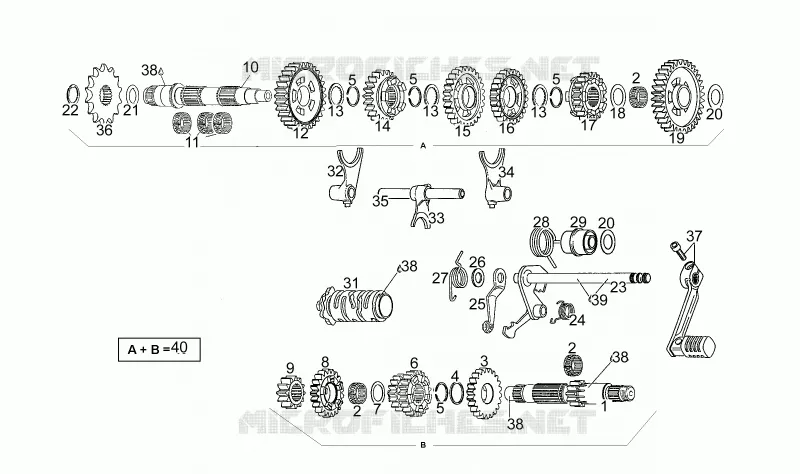

Find the detailed Gear box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
