Engine displacement
850
2
Model
NA-MANA
3
Year
2016
4
Trim
NA Mana GT
5
Parts Catalog
Cylinder with piston
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Flywheel cover
Cylinder with piston
10
9
9
8
8
7
7
7
7
6
6
5
5
4
4
3
3
2
2
1
1
10
11
11
12
12
12
12
13
13
14
14
15
15
16
17
1
Cylinder with piston
874989
Not Available
2
Piston assy cat.3 "C"
8749880003
Not Available
2
Piston assy cat.1 "A"
8749880001
Not Available
2
Gr.piston 1
B0148020001
£85,87 Unit Price incl. VAT
2
Gr.piston 2
B0148020002
£85,87 Unit Price incl. VAT
2
Piston assy cat.2 "B"
8749880002
Not Available
2
Piston assy cat.4 "D"
8749880004
Not Available
2
Piston assy cat.4 "P"
B0148020004
Not Available
2
Gr.piston 3
B0148020003
£80,02 Unit Price incl. VAT
3
Compression ring
844941
Not Available
4
Oil scraper ring
844942
Not Available
5
SEGMENT
844943
£24,23 Unit Price incl. VAT
6
Axe
827820
£18,74 Unit Price incl. VAT
7
CIRCLIPS
828116
£1,00 Unit Price incl. VAT
8
Gicleur carter
825597
£2,35 Unit Price incl. VAT
9
PIVOT DE CENTR.
484993
£1,16 Unit Price incl. VAT
10
JOINT CULASSE
831203
£47,46 Unit Price incl. VAT
11
TENDEUR
82650R
£25,94 Unit Price incl. VAT
12
JOINT
847928
£3,24 Unit Price incl. VAT
13
Screw w/ flange M6x16
434541
Not Available
14
PLAQUETTE CIL.
840135
£4,14 Unit Price incl. VAT
15
Screw w/ flange M6x14
833722
Not Available
16
Cylinder with piston ant.
B016146
Not Available
17
Cylinder with piston post.
B016145
Not Available

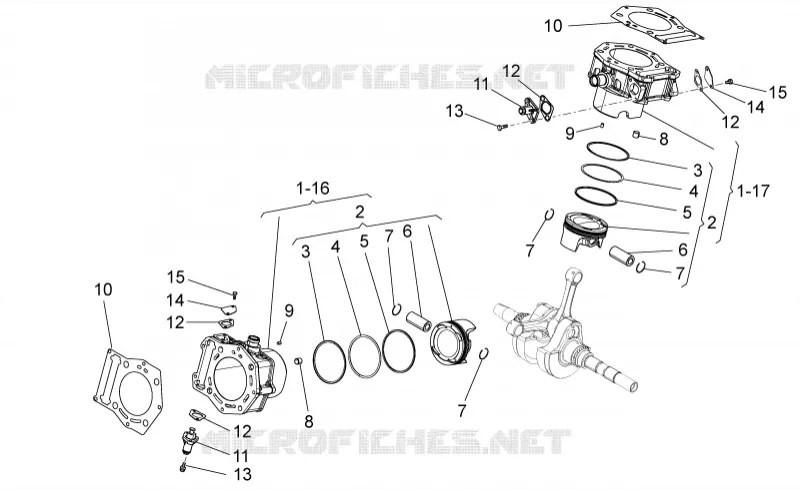

Find the detailed Cylinder with piston APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
