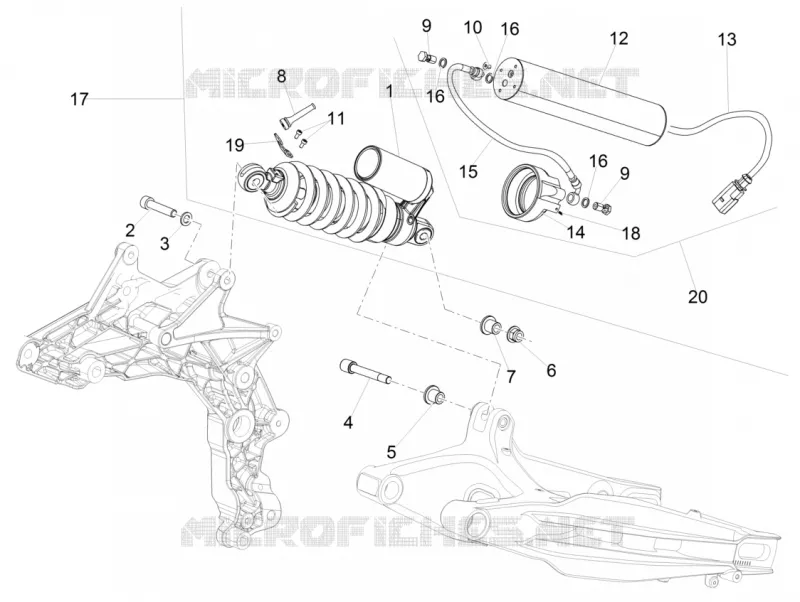

Shock absorber
8
7
6
5
4
3
2
1
20
19
18
17
16
16
16
15
14
13
12
11
10
9
9
1
Rear shock absorber
2R000254
Not Available
2
Hex socket screw
AP8150329
£5,10 Unit Price incl. VAT
3
Washer 10,5X18X2*
AP8152176
£3,65 Unit Price incl. VAT
4
Hex socket screw M10x59
AP8152411
£18,50 Unit Price incl. VAT
5
Ring nut
860662
£42,73 Unit Price incl. VAT
6
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
7
T bush *
AP8121155
£3,85 Unit Price incl. VAT
8
Fairlead
2R000034
£11,00 Unit Price incl. VAT
9
screw
2R000030
£13,63 Unit Price incl. VAT
10
Screw
2R000033
£2,29 Unit Price incl. VAT
11
Lower screw
2R000035
£15,06 Unit Price incl. VAT
12
Preload tube
2R000027
Not Available
13
Wiring
2R000028
£358,92 Unit Price incl. VAT
14
Preload
2R000026
£213,42 Unit Price incl. VAT
15
Connecting pipe
2R000029
£124,04 Unit Price incl. VAT
16
Washer
2R000031
£10,66 Unit Price incl. VAT
17
Complete rear shock absorber
2B001777
Not Available
18
Screw
2R000032
£1,36 Unit Price incl. VAT
19
Plate
2R000036
£26,06 Unit Price incl. VAT
20
CPL preload unit
2R000025
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
