1
Engine displacement
1100
2
Model
TUONO
3
Year
2021
4
Trim
Tuono V4 Factory 1100 Euro 5 Superpole ABS
5
Parts Catalog

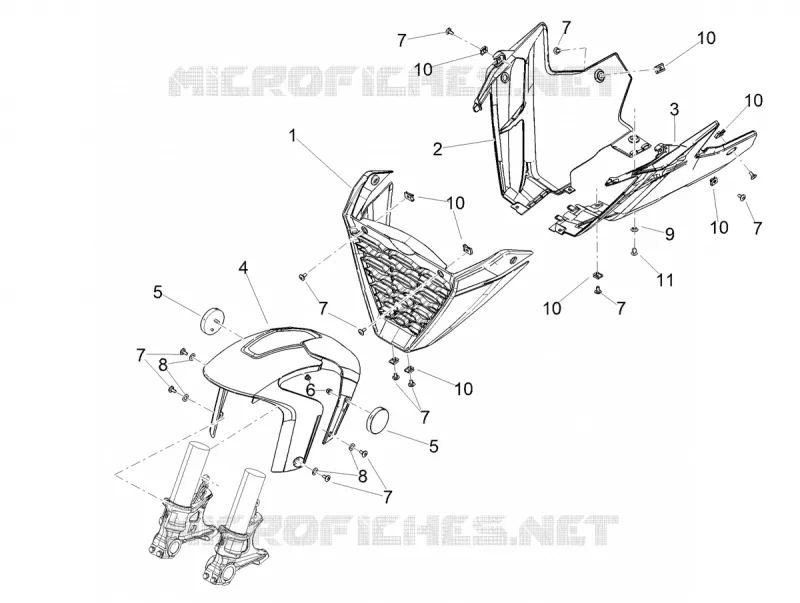

FRONT FENDER - LOWER FAIRING
6
Parts Diagram
Parts Catalog
SWINGARM
by
FRONT FAIRING
FRONT FENDER - LOWER FAIRING
10
10
10
10
10
10
10
9
8
7
7
7
7
7
7
7
6
4
3
2
2
1
11
8
7
5
5
4
3
1
Butée carénage
2B008104
£97,58 Unit Price incl. VAT
2
Carénage inf.d v.noir
2B008105000NI
Not Available
2
Carénage inf.d
2B008105
£117,11 Unit Price incl. VAT
3
Carénage int. G
2B008106
£117,11 Unit Price incl. VAT
3
Carénage inf.g v.noir
2B008106000NI
Not Available
4
Garde-boue avant
2B008635
£78,05 Unit Price incl. VAT
5
Reflector, amber
AP8224163
£11,24 Unit Price incl. VAT
6
Self-locking nut M5
AP8152306
Not Available
7
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
8
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
9
T bush
843213
£1,27 Unit Price incl. VAT
10
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
11
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
