1
Engine displacement
1100
2
Model
TUONO
3
Year
2022
4
Trim
Tuono V4 Factory 1100 Euro 5 Superpole ABS
5
Parts Catalog

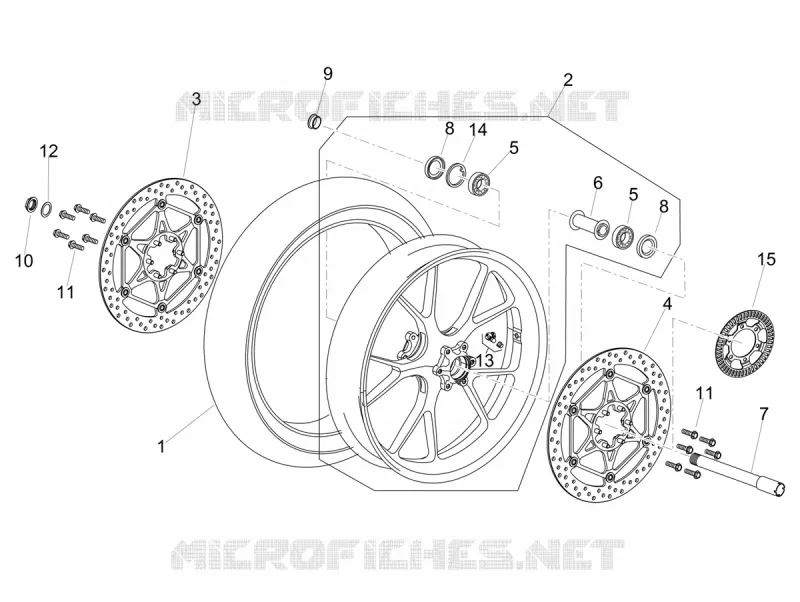

Front wheel
6
Parts Diagram
Parts Catalog
OIL PUMP - OIL FILTER
by
REAR WHEEL
Front wheel
15
14
13
12
11
9
8
7
6
5
4
3
2
2
1
11
10
8
5
1
Pneu avant (Pirelli)
2B006862
£593,33 Unit Price incl. VAT
2
Front wheel 3.50x17" Red
2B002105
£435,46 Unit Price incl. VAT
2
Front wheel, black
896754
£435,46 Unit Price incl. VAT
3
RH front brake disc D.330
2B001135
£342,67 Unit Price incl. VAT
4
LH front brake disc D.330
2B001136
£342,67 Unit Price incl. VAT
5
Bearing 25x47x12
AP8110094
£6,56 Unit Price incl. VAT
6
Internal spacer
AP8128169
£31,08 Unit Price incl. VAT
7
Front wheel spindle
85263R
Not Available
8
Gasket ring 30x47x7
AP8125841
£1,96 Unit Price incl. VAT
9
Front RH whe.ou.spacer
AP8125728
£15,91 Unit Price incl. VAT
10
Wheel spindle nut
AP8152335
£10,94 Unit Price incl. VAT
11
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
12
Washer 25,2x36x1
AP8152323
£8,57 Unit Price incl. VAT
13
Tubeless tyre valve 90°
AP8104728
£18,78 Unit Price incl. VAT
14
Snap ring d47
AP8125842
£0,66 Unit Price incl. VAT
15
Phonic wheel
2B003169
£45,77 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
