1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V Euro 5 ABS
5
Parts Catalog

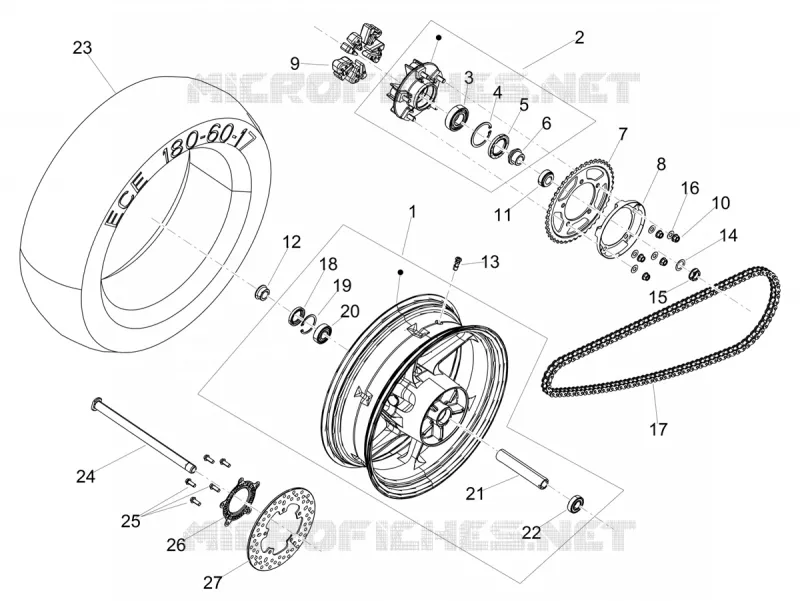

REAR WHEEL
6
Parts Diagram
Parts Catalog
CRANKCASES I
by
STAND
REAR WHEEL
27
26
25
20
21
22
19
15
14
13
12
11
10
9
8
7
6
5
4
3
24
23
23
18
17
16
2
1
1
Roue arrière 5.5x17"
2B008370
£702,59 Unit Price incl. VAT
2
Porte-couronne cpl.
2B006240
£400,04 Unit Price incl. VAT
3
Radial bearing
832848
£21,04 Unit Price incl. VAT
4
Snap ring
006662
Not Available
5
Bague d'étanchéité 40X62X7 NBR75
2B006559
£4,68 Unit Price incl. VAT
6
Entretoise joint élast.
2B006285
£29,26 Unit Price incl. VAT
7
Couronne Z=43
CM306201
£95,75 Unit Price incl. VAT
8
Protection de chaîne
2B006060
Not Available
9
Caoutchouc antidéchirures
2B006242
£7,98 Unit Price incl. VAT
10
DAX nut M10x1,25
2B002634
£3,60 Unit Price incl. VAT
11
Entretoise roue arrière
2B006283
£15,18 Unit Price incl. VAT
12
Entretoise roue arrière
2B006284
£15,18 Unit Price incl. VAT
13
Tubeless tyre valve 90°
AP8104728
£18,78 Unit Price incl. VAT
14
Wheel pin washer
AP8125687
£1,27 Unit Price incl. VAT
15
Rear wheel spindle nut
648708
Not Available
16
Rondelle plate
2B007292
£2,68 Unit Price incl. VAT
17
Chain
AP8107168
£127,16 Unit Price incl. VAT
18
Gasket ring 30x47x7
AP8125841
£1,96 Unit Price incl. VAT
19
Circlip
006647
Not Available
20
Roulement à billes 20x47x14
2B007581
£35,32 Unit Price incl. VAT
21
Entretoise int. roue ar.
2B006246
£25,25 Unit Price incl. VAT
22
Roulement
2B007580
£33,61 Unit Price incl. VAT
23
Pneu arrière "Pirelli"
2B007586
£616,42 Unit Price incl. VAT
23
Pneu arrière "Dunlop"
2B006830
£576,24 Unit Price incl. VAT
24
Goujon de la roue
2B006173
£46,99 Unit Price incl. VAT
25
Screw w/ flange M8x20
2B002416
£3,86 Unit Price incl. VAT
26
Phonic wheel ABS
890960
£37,02 Unit Price incl. VAT
27
Brake disc
85248R
£94,10 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
