1
Engine displacement
50
2
Model
MOJITO
3
Year
2001
4
Trim
Mojito Custom 2T (engine Aprilia)
5
Parts Catalog

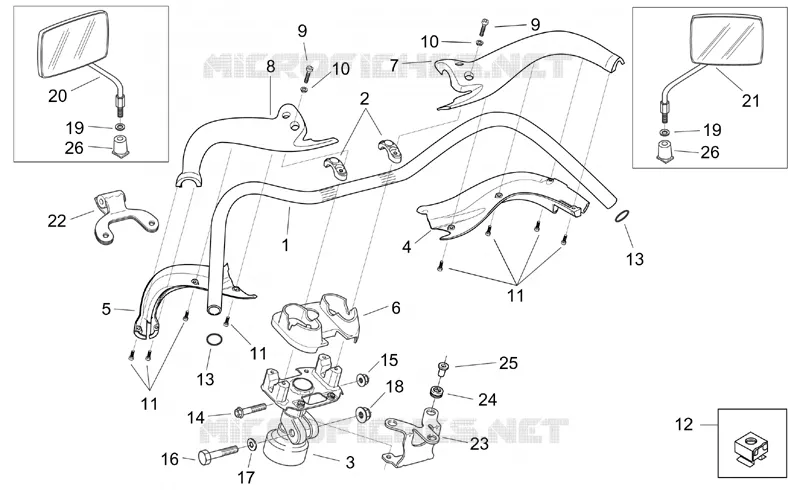

Handlebar
6
Parts Diagram
Parts Catalog
Rear body III
by
Dashboard
Handlebar
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
13
14
14
15
16
17
18
19
19
20
21
22
23
24
25
26
26
1
Handlebar tube
AP8218490
Not Available
2
Upper U-bolt
AP8218489
£49,91 Unit Price incl. VAT
3
Lower support
AP8218491
£97,75 Unit Price incl. VAT
4
RH lower Handlebar covering
AP8118634
Not Available
4
RH lower Handlebar covering
AP8218484
£59,62 Unit Price incl. VAT
5
LH lower Handlebar covering
AP8218485
£59,62 Unit Price incl. VAT
5
LH lower Handlebar covering
AP8118635
Not Available
6
Handlebar central covering
AP8218486
£66,79 Unit Price incl. VAT
6
Handlebar central covering
AP8118636
Not Available
7
RH upper Handlebar covering
AP8249877
Not Available
7
RH upper Handlebar covering
AP8218487
Not Available
8
LH upper Handlebar covering
AP8249878
Not Available
8
LH upper Handlebar covering
AP8218488
Not Available
9
Hex socket screw M10x80
AP8150286
£29,11 Unit Price incl. VAT
10
T bush
AP8121811
£1,27 Unit Price incl. VAT
11
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
11
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
12
Captive nut M6
AP8221213
£1,88 Unit Price incl. VAT
13
O-ring
AP8203976
£0,94 Unit Price incl. VAT
14
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
15
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
16
Screw M10x55
AP8150201
Not Available
17
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
18
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
19
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
20
LH rearview mirror
AP8202170
Not Available
21
RH rearview mirror
AP8202166
£27,70 Unit Price incl. VAT
22
Headlight support clamp
AP8234175
£46,85 Unit Price incl. VAT
22
Headlight support clamp
AP8146794
£68,30 Unit Price incl. VAT
23
Dashboard support clamp
AP8234174
Not Available
24
Rubber spacer *
AP8112599
Not Available
25
T bush *
AP8121790
£1,88 Unit Price incl. VAT
26
Mirror rubber
AP8144296
£4,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
