1
Engine displacement
50
2
Model
MOJITO
3
Year
2002
4
Trim
Mojito Custom 2T (engine Aprilia)
5
Parts Catalog
Oil pump
6

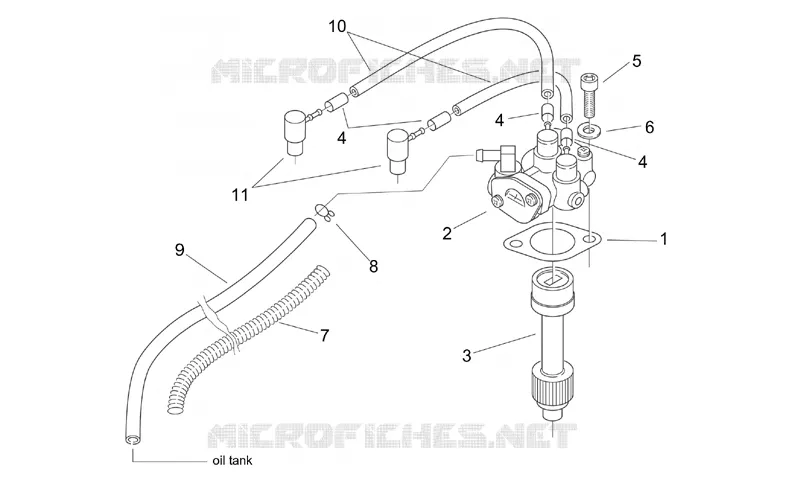

Parts Diagram
Parts Catalog
Clutch II
by
Fuel supply
Oil pump
1
2
3
4
4
4
5
6
7
8
9
10
11
1
Mix oil pump gasket
AP3IVA000022
£12,61 Unit Price incl. VAT
2
Oil pump
AP2IBA000105
Not Available
3
Oil pump shaft assy.
AP3ICA000054
£21,43 Unit Price incl. VAT
4
Clip
AP2FBN000021
£5,75 Unit Price incl. VAT
5
Hex socket screw
AP4ADN000028
Not Available
6
Washer
AP4DFN000032
Not Available
7
Spring
AP3IAA000052
Not Available
8
Hose clamp
AP2FBN000034
Not Available
9
Oil pipe
AP2HAN000035
Not Available
10
Oil pipe
AP2HAN000022
£12,84 Unit Price incl. VAT
11
Oil anti-return valve
AP2HAA000051
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
