1
Engine displacement
1100
2
Model
RSV4
3
Year
2022
4
Trim
RSV4 1100 Factory Euro 5 ABS
5
Parts Catalog

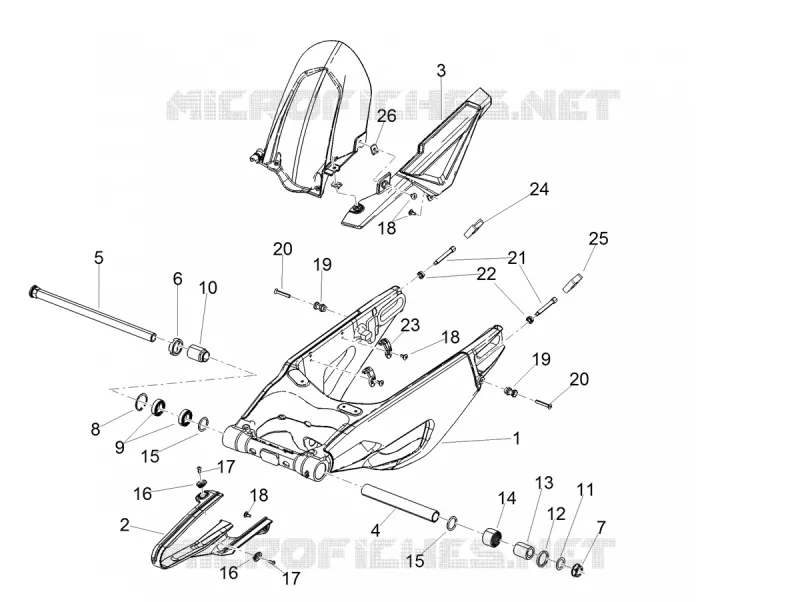

SWINGARM
6
Parts Diagram
Parts Catalog
LOCKS
by
FRONT BRAKE MASTER CYLINDER
SWINGARM
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
18
18
19
19
20
20
21
22
23
24
25
26
1
Bras oscillant fini
2B006712
£2 341,98 Unit Price incl. VAT
2
Patin de chaîne
2B006921
£29,26 Unit Price incl. VAT
3
Carter chaîne
2B006923
£29,26 Unit Price incl. VAT
4
Internal spacer
AP8121570
£52,81 Unit Price incl. VAT
5
Rear swing arm pin
858707
£220,78 Unit Price incl. VAT
6
Swing arm ring nut
648707
£14,14 Unit Price incl. VAT
7
Rear wheel spindle nut
648708
Not Available
8
Inside circlip d37
AP8121204
£1,27 Unit Price incl. VAT
9
Ball bearing 61904-2RS1
890002
£46,70 Unit Price incl. VAT
10
Adjustment bush
858708
£73,96 Unit Price incl. VAT
11
Wheel pin washer
AP8125687
£1,27 Unit Price incl. VAT
12
Gasket ring
AP8144005
£13,28 Unit Price incl. VAT
13
Roller cage
AP8110078
£11,72 Unit Price incl. VAT
14
Rear int.sw.arm piv.bush
858936
£35,00 Unit Price incl. VAT
15
O-ring 134
AP8144048
£1,27 Unit Price incl. VAT
16
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
17
Hex socket screw
AP8152174
£1,88 Unit Price incl. VAT
18
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
19
Maintenance
AP8148824
£17,62 Unit Price incl. VAT
20
Screw M6x40
AP8150468
£1,27 Unit Price incl. VAT
21
Chain tens.adjuster screw
2B001920
£4,74 Unit Price incl. VAT
22
Nut M6
2B004511
£0,42 Unit Price incl. VAT
23
Passe-câble
2B006935
£2,94 Unit Price incl. VAT
24
RH chain guide plate
AP8144444
£28,00 Unit Price incl. VAT
25
LH chain guide plate
AP8144443
£28,00 Unit Price incl. VAT
26
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
