1
Engine displacement
1100
2
Model
RSV4
3
Year
2022
4
Trim
RSV4 1100 Euro 5 ABS
5
Parts Catalog

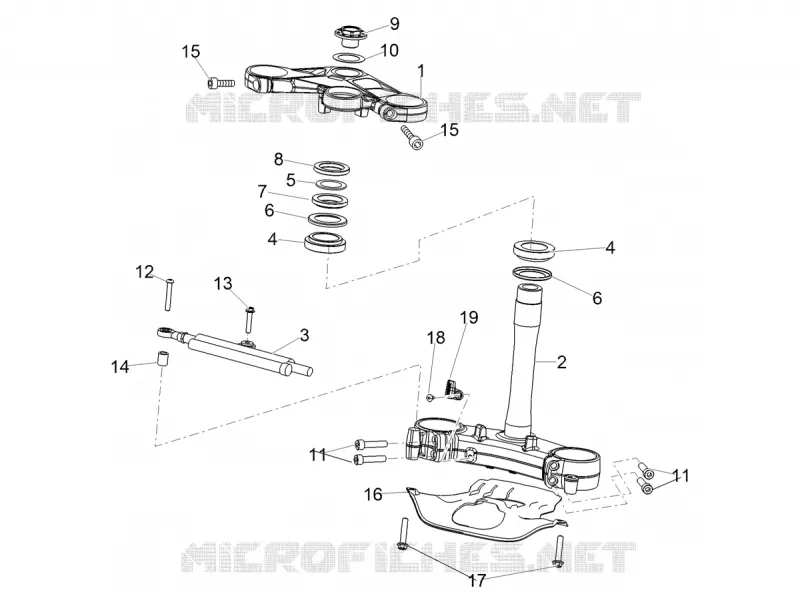

STEERING
6
Parts Diagram
Parts Catalog
CLUTCH
by
FRONT BRAKE CALIPER
STEERING
1
2
3
4
4
5
6
6
7
8
9
10
11
11
12
13
14
15
15
16
17
18
19
1
Plaque supérieure de fourche
2B006614
£331,79 Unit Price incl. VAT
2
Plaque inférieure
2B008445
£780,64 Unit Price incl. VAT
3
Amortisseur de direction
2B008933
£679,50 Unit Price incl. VAT
4
Axial ball bearing
AP8110077
Not Available
5
Steering security plate
AP8121207
£28,55 Unit Price incl. VAT
6
Dust cover ring
AP8123641
£13,74 Unit Price incl. VAT
7
Ring nut
AP8123642
£25,34 Unit Price incl. VAT
8
Return ring nut
AP8123643
£27,53 Unit Price incl. VAT
9
Upper plate fixing bush
AP8163170
£132,83 Unit Price incl. VAT
10
Stem plug washer
AP8152442
£4,50 Unit Price incl. VAT
11
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
12
TE flanged screw M6x40
1A011120
£0,43 Unit Price incl. VAT
13
Hex socket screw M6x30
AP8150220
£0,89 Unit Price incl. VAT
14
Entretoise
876413
£4,02 Unit Price incl. VAT
15
Screw
AP8150540
£10,54 Unit Price incl. VAT
16
Fermeture inf. Fourche
2B005955
£14,84 Unit Price incl. VAT
17
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
18
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
19
Support de tuyau
2B008388
£4,68 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
