1
Engine displacement
1100
2
Model
RSV4
3
Year
2020
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog
EXHAUST
6

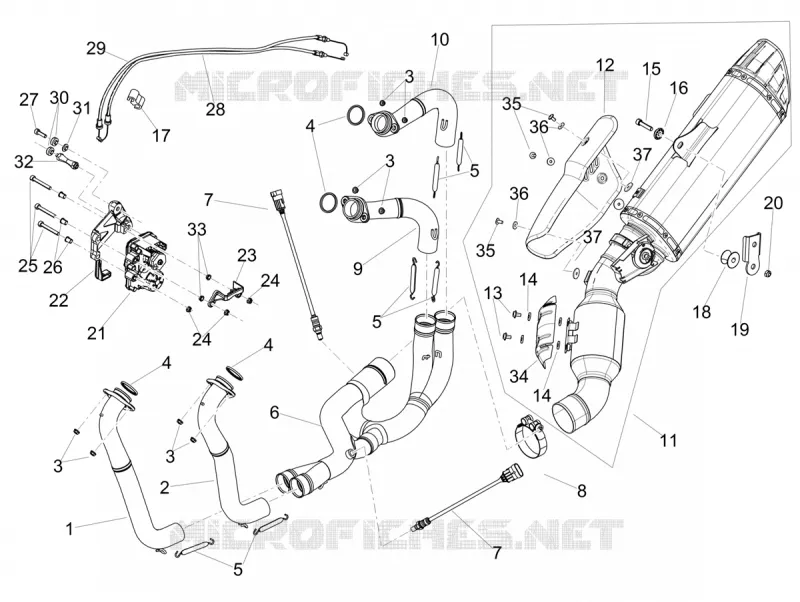

Parts Diagram
Parts Catalog
SADDLE COMPARTMENT
by
SPEEDOMETER
EXHAUST
1
2
3
3
3
3
4
4
4
5
5
5
6
7
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
35
36
36
37
37
1
Collecteur avant D.
2B005811
£212,86 Unit Price incl. VAT
2
Collecteur avant G.
2B005812
£212,86 Unit Price incl. VAT
3
Nut
436947
£1,14 Unit Price incl. VAT
4
Exhaust pipe gasket
852090
Not Available
5
Spring
AP8121170
£18,19 Unit Price incl. VAT
6
Collecteur central
2B005716
£1 052,95 Unit Price incl. VAT
7
Lamda sensor
2D000152
£106,68 Unit Price incl. VAT
8
Collier serr. Tube
2B005645
£17,36 Unit Price incl. VAT
9
Collecteur arr. D.
2B005813
£173,21 Unit Price incl. VAT
10
Collecteur arr. G.
2B005814
£173,21 Unit Price incl. VAT
11
Silencieux d'échappement
2B0055235
£3 830,40 Unit Price incl. VAT
12
Protect. silencieux
2B006316
£331,45 Unit Price incl. VAT
13
Vis bride M6x12
2B006347
£8,42 Unit Price incl. VAT
14
Rondelle isolante Ø 15 Ø 5.08 x 2
2B006350
£4,69 Unit Price incl. VAT
15
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
16
Bush
AP8121199
£10,54 Unit Price incl. VAT
17
Staple
2B000276
£1,86 Unit Price incl. VAT
18
Entretoise
2L002131
£8,84 Unit Price incl. VAT
19
Bride de fixation
2L002133
£9,76 Unit Price incl. VAT
20
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
21
Exhaust valve actuator
2D000263
£561,14 Unit Price incl. VAT
22
Valve support clamp
2B003443
£3,43 Unit Price incl. VAT
23
Cover support
2B003577
£1,87 Unit Price incl. VAT
24
Low self-locking nut M6
AP8150115
Not Available
25
Hex socket screw M6x45
AP8150403
£1,94 Unit Price incl. VAT
26
Bushing 6,4x8,4x10,5
GU91120607
£5,29 Unit Price incl. VAT
27
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
28
Exhaust valve opening cable
2B003425
£31,82 Unit Price incl. VAT
29
Exhaust valve closing cable
2B003556
£24,89 Unit Price incl. VAT
30
Bush
2B003714
£2,66 Unit Price incl. VAT
31
Bush
AP8121032
£3,88 Unit Price incl. VAT
32
Spacer
894933
£24,37 Unit Price incl. VAT
33
T bush
AP8121811
£1,27 Unit Price incl. VAT
34
Protection complète
2B006317
£176,41 Unit Price incl. VAT
35
Vis M5x10
2B006348
£8,84 Unit Price incl. VAT
36
Rondelle isolante Ø 14 Ø 4.08 x 2
2B006349
£4,92 Unit Price incl. VAT
37
Rondelle isolante Ø 20 Ø 4.08 x 2
2B006351
£8,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
